Four Wheel Drive Selector Switch

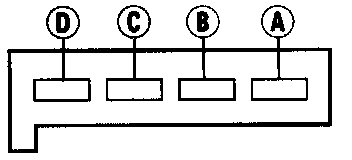

Transfer Case Shift Switch Connector:

SWITCH POSITION TERMINALS RESISTANCE

ALL (A) - (D) approx. 18 Ohms
2WD (B) - (C) approx. 3.9 KOhms
4x4 HIGH (B) - (C) approx. 1.1 KOhms
4x4 LOW (B) - (C) approx. 36O Ohms
