Transfer Case Actuator

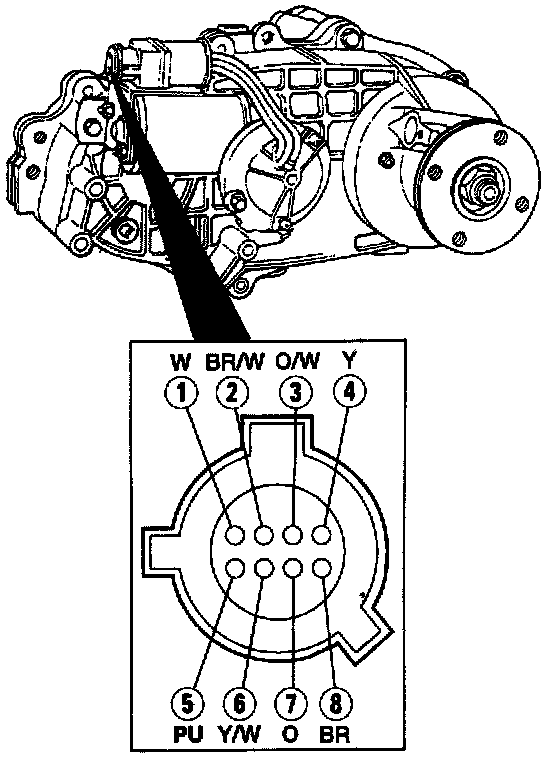

T-Case Shift Motor Connector Pinout:

COMPONENT TERMINALS RESISTANCE

Shift Motor 4 - 7 Approx. 1.0 Ohms

Magnetic Clutch 8 - Ground Less than 1O Ohms

SHIFT MOTOR SENSORS

SHIFT POSITION TERMINALS WITH CONTINUITY

2 High 2, 3, 5, & 6

4 High 1, 2, & 6

4 Low 1, 3, & 6
