Intake Air Temperature Sensor (Dynamic Chamber)

INTAKE AIR TEMPERATURE SENSOR (DYNAMIC CHAMBER)
Resistance Inspection:
1. Remove the intake air temperature sensor (dynamic chamber).

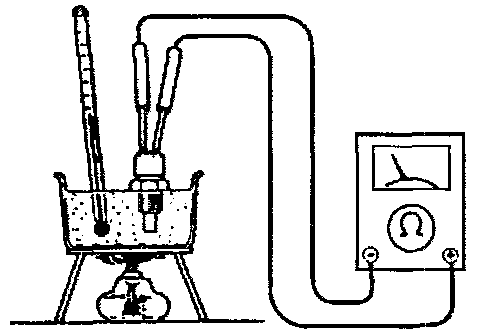

2. Place the sensor in water with a thermometer, and heat the water gradually.

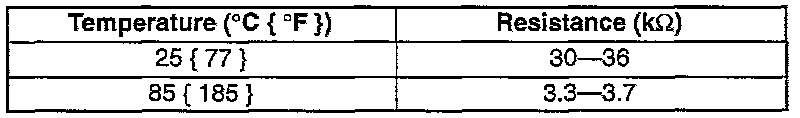

3. Measure the resistance of the sensor by using an ohm meter.
4. If not as specified, replace the intake air temperature sensor.

Tightening torque: 7.9 - 11.7 Nm (80 - 120 kgf.cm , 70-104 in.lb.)
