With SST-Engine Signal Monitor
FUEL TANK PRESSURE SENSOR
Inspection Using SSTs (Monitor, Engine Signal and Adapter Harness): 1.
Connect the SSTs (Monitor, Engine Signal and Adapter Harness) to the ECM.
2.

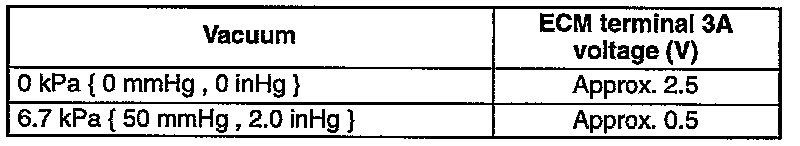

Apply vacuum to the
fuel tank pressure sensor by using a vacuum pump. Measure the pressure at ECM terminal 3A.
3.
If not as specified, replace the
fuel tank pressure sensor.
