Idle Air Control Valve
Inspection: 1.
Verify that the ignition switch is OFF
2.
Disconnect the
idle air control valve connector.
3.

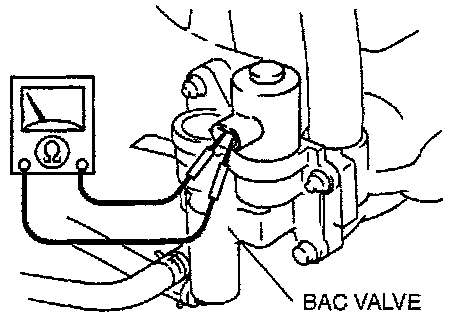

Measure the resistance of the
idle air control valve by using an ohmmeter.
Specification: 10.7 - 12.3 Ohms @ 20°C (68°F) 4.
If not as specified, replace the
BAC valve.
