Flow of Diagnosis
WARNING: High voltage in the ignition system can cause strong electrical shocks. Avoid direct contact with the vehicle body during "spark tests". Troubleshooting 1.
Disconnect the
fuel pump relay.
2.
Verify all high tension leads are connected properly.
3.
Inspect the
ignition system according to the diagnostic flow shown below.

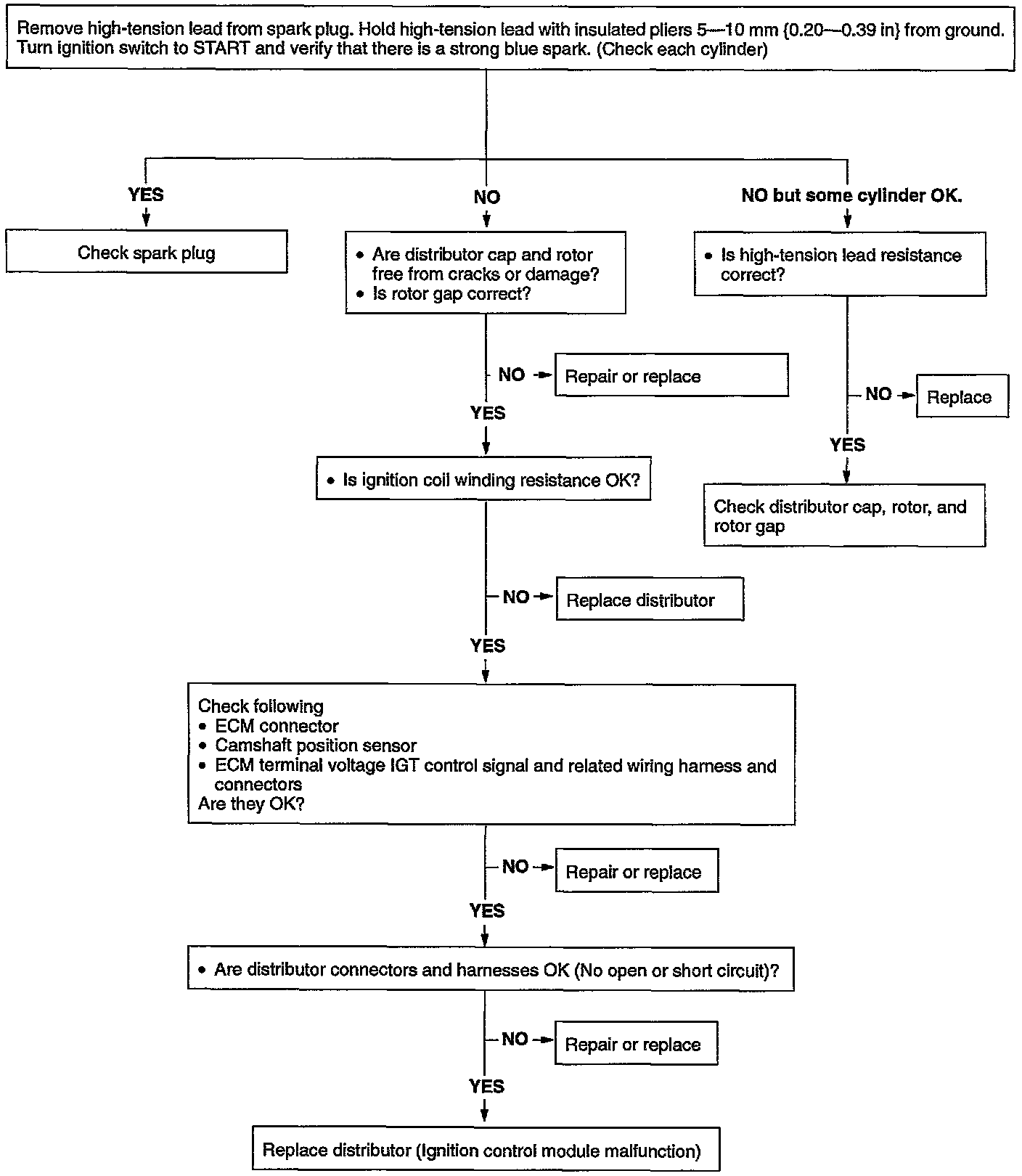

Diagnostic Flow:
