Clutch Switch: Service and Repair
INSPECTION -
Disconnect the
clutch switch connector.
-

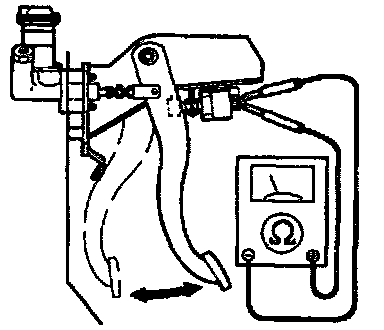

Connect an ohmmeter to the switch.
-

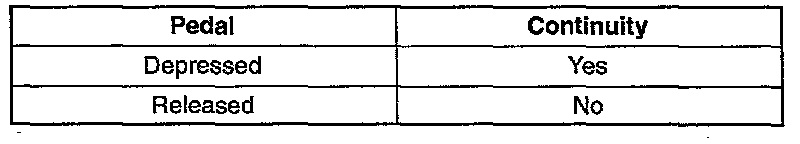

Check continuity of the switch.
-
If not as specified, adjust the pedal height and reinspection.
REPLACEMENT -
Disconnect the
clutch switch connector.
-

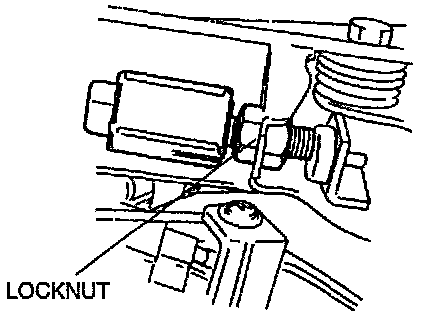

Loosen the locknut.
-
Remove the
clutch switch.
-
Install in the reverse order of removal.
-
Adjust the pedal height.
