EGR Valve: Service and Repair
REPLACEMENT Plug the water hoses after disconnecting them.
-

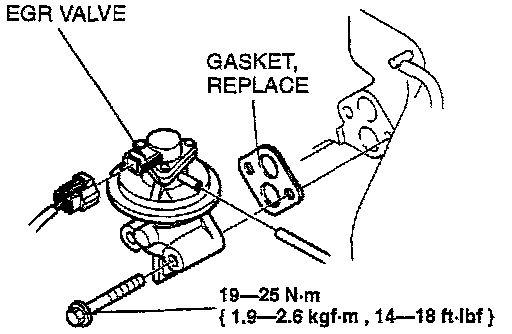

Remove the
EGR valve in the sequence shown below.
-
EGR hoses
-
Vacuum hose
-
EGR valve position sensor connector
-
EGR valve and gasket
-
Install a new gasket, and then install the
EGR valve in the reverse order of removal.
