Adjustment Shim Assembly Note
Adjustment Shim Assembly Note 1.

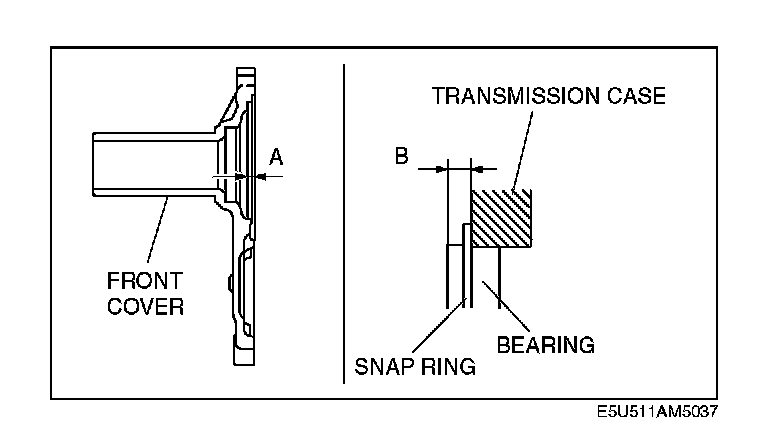

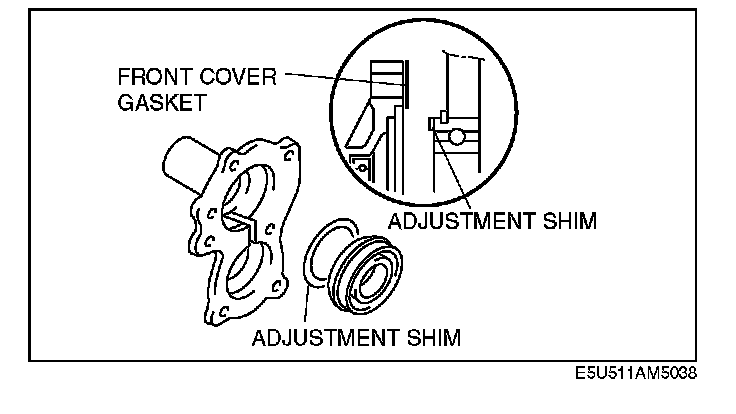

After measuring dimensions A and B shown in the figure, use the adjustment shim(s) of the thickness corresponding to the value of A minus B, so that the bearing end play will be within the specification.
Bearing end play:
0 - 0.1 mm (0 - 0.004 in)

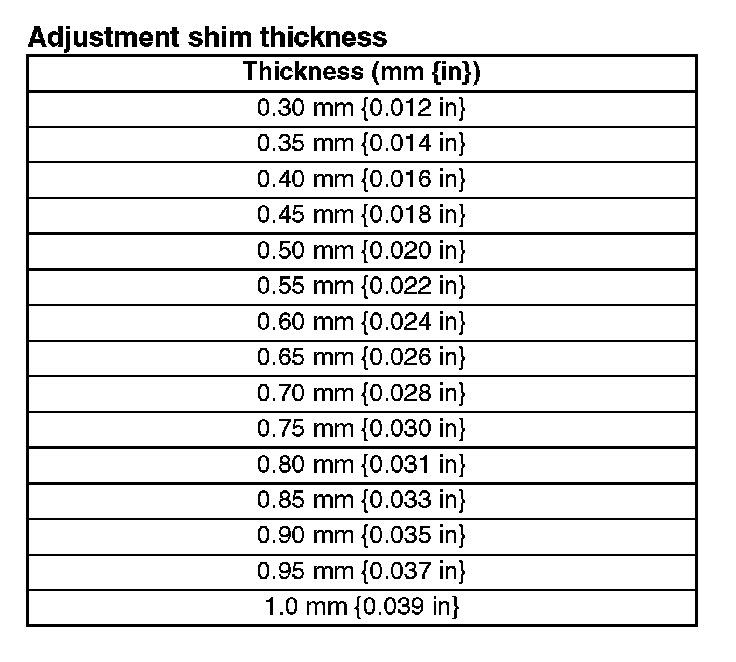

Adjustment shim thickness
