Front Cover Assembly Note

Front Cover Assembly Note

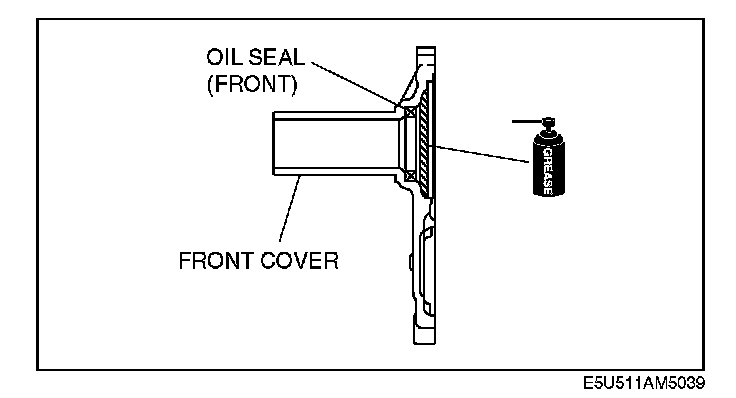

1. Install the oil seal (front) onto the front cover.
2. Apply grease to the shaded area of the front cover.
3. Install the front cover.
