With Automatic Transaxle

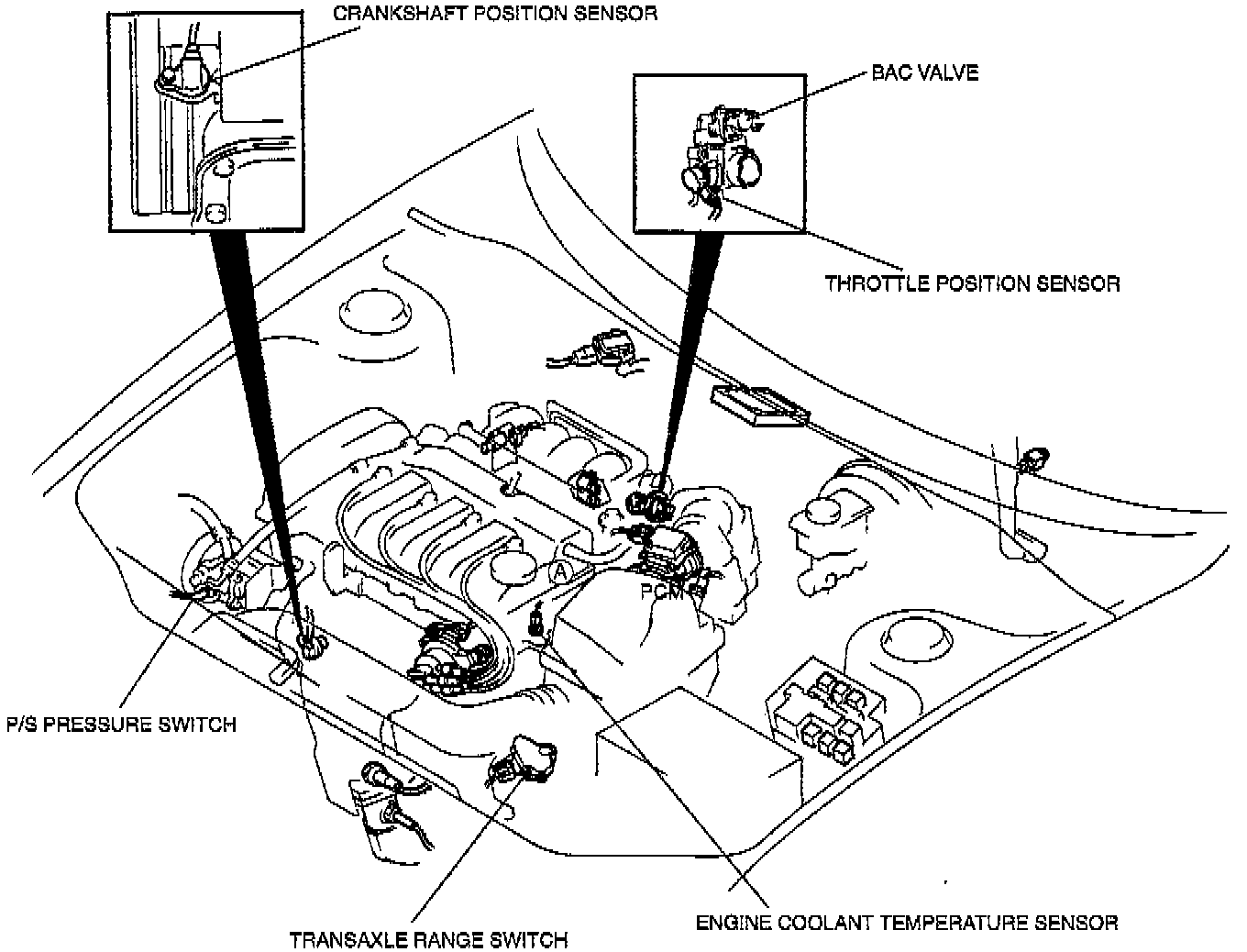

IDLE AIR CONTROL SYSTEM DESCRIPTION




The idle air control system controls the bypass air amount that passes through the throttle body to improve startability, warm-up, idle smoothness, and driveablity.
