Data Link Connector: Locations
Data Link Connector (1) ��{4Connector Locations:

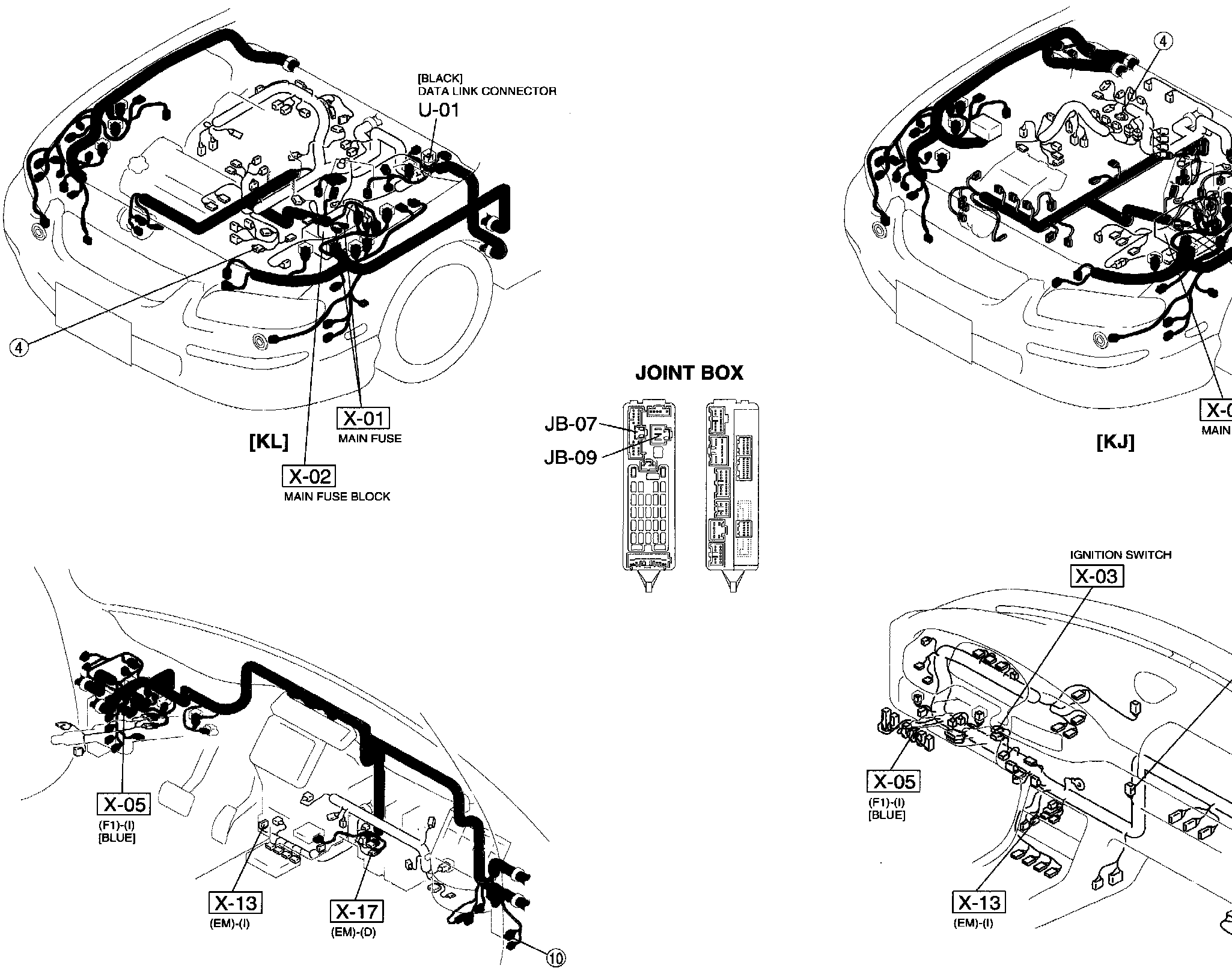

Refer to connector
U-01 in the figure above.
Located on the left side of the engine compartment, near the firewall.
Data Link Connector (2)DLC2-Located on the lower left side of the instrument panel:
