Condenser Fan Relay

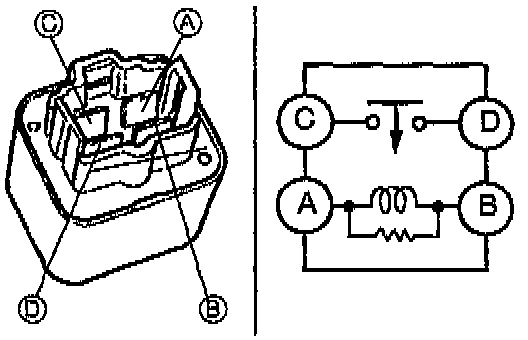

CONDENSER FAN RELAYInspection 1.
Remove the condenser fan relay.
2.

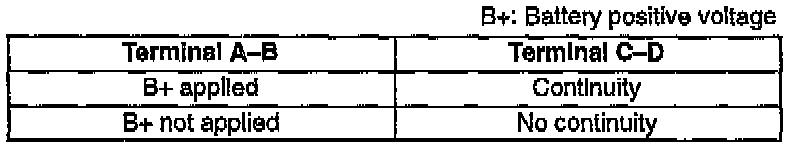

Apply battery positive voltage and check continuity between terminals of the
relay by using an ohmmeter.
3.
If not as specified, replace the
condenser fan relay.
