Input Devices

[Input Device]

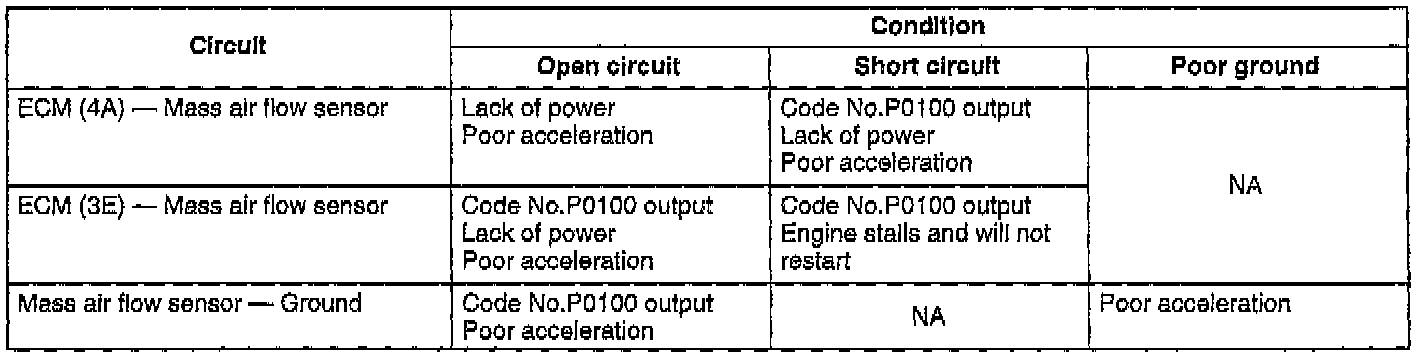

Mass Air Flow Sensor

Crankshaft Position Sensor (NE Signal), Camshaft Position Sensor (SGC Signal)

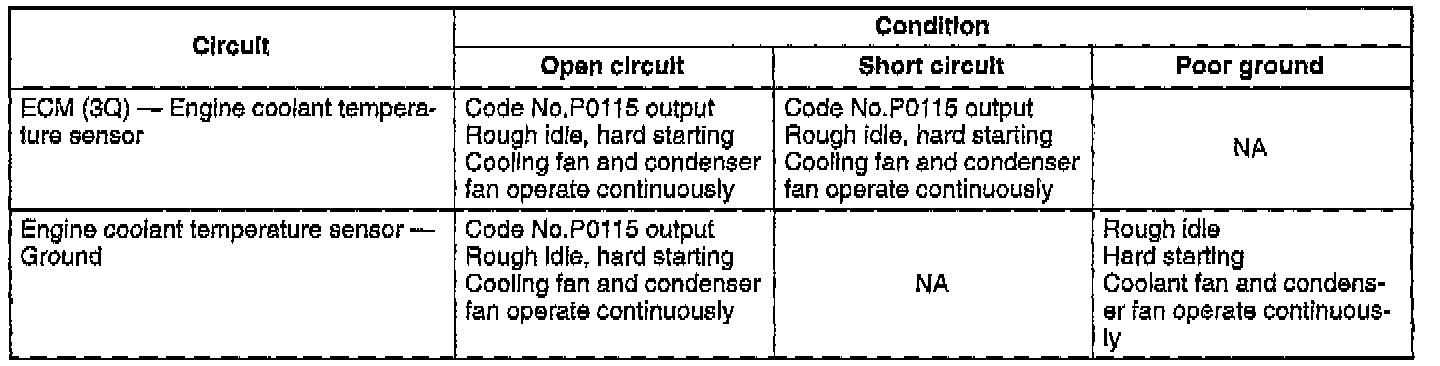

Engine Coolant Temperature Sensor

Intake Air Temperature Sensor (AC)

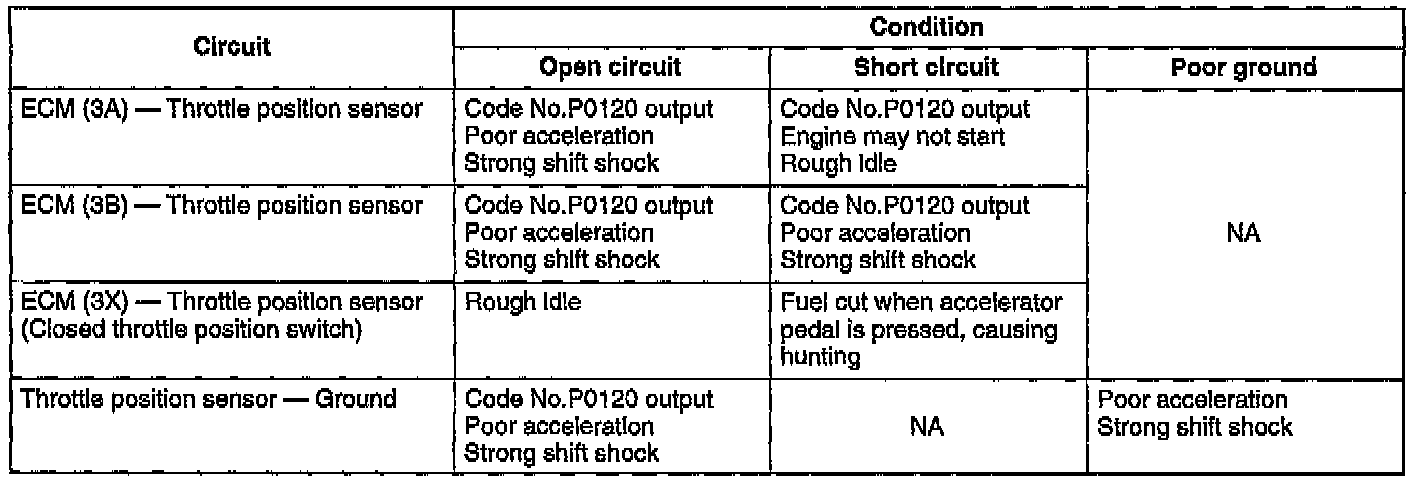

Throttle Position Sensor (Closed Throttle Position Switch Included)

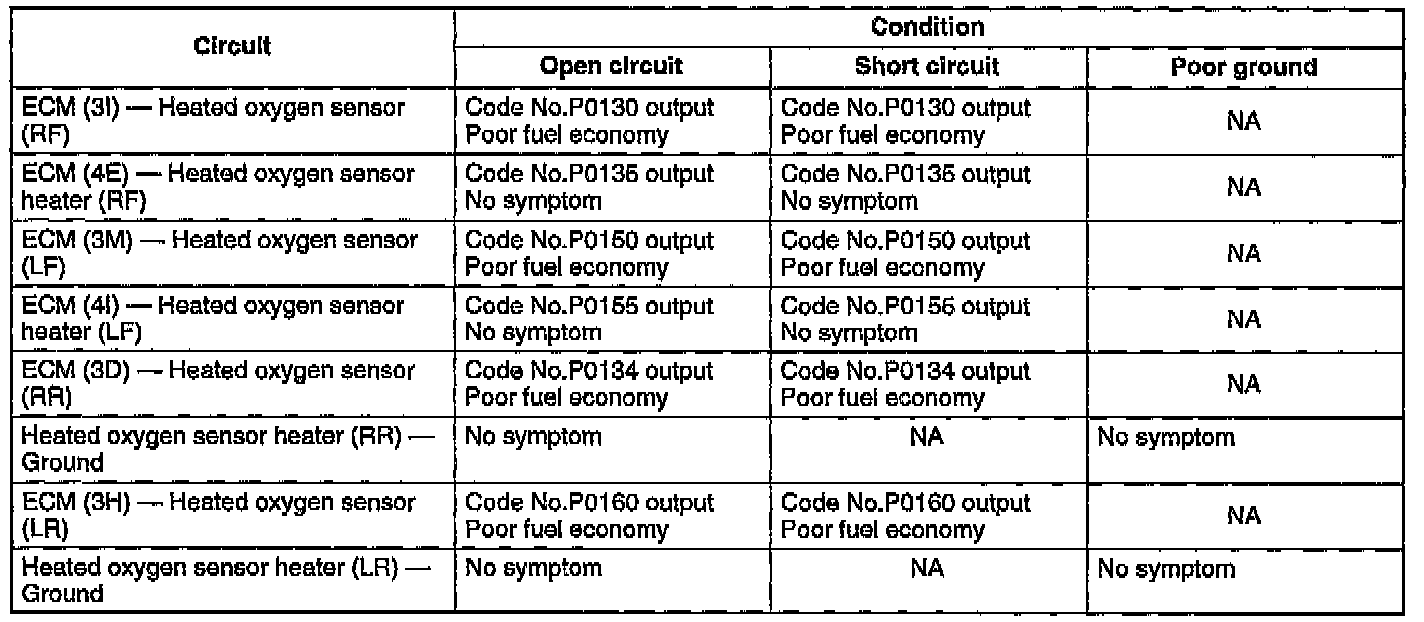

Heated Oxygen Sensor

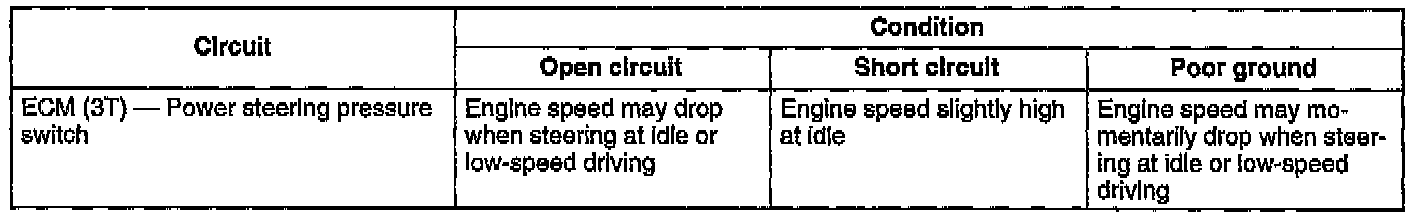

Power Steering Pressure Switch

A/C Signal (A/C Amplifier)

Blower Signal (A/C Amplifier)

Brake Signal (Brake Switch)

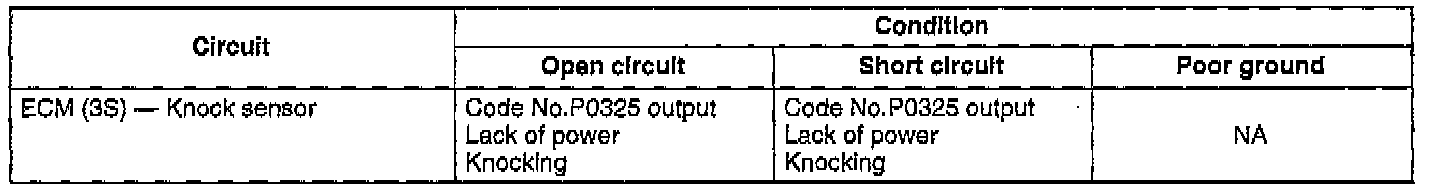

Knock Sensor

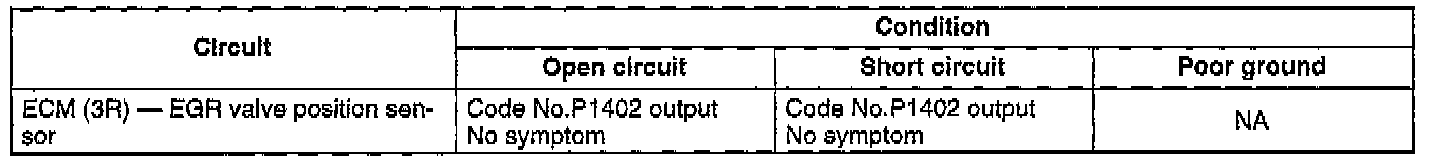

EGR Valve Position Sensor

High Air Charging Pressure Zone Signal

Vehicle Speed Sensor

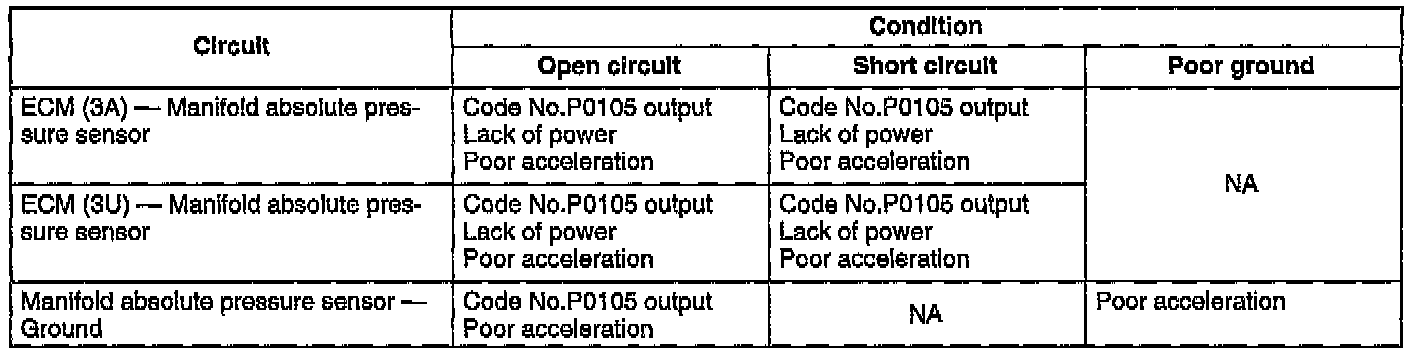

Manifold Absolute Pressure Sensor

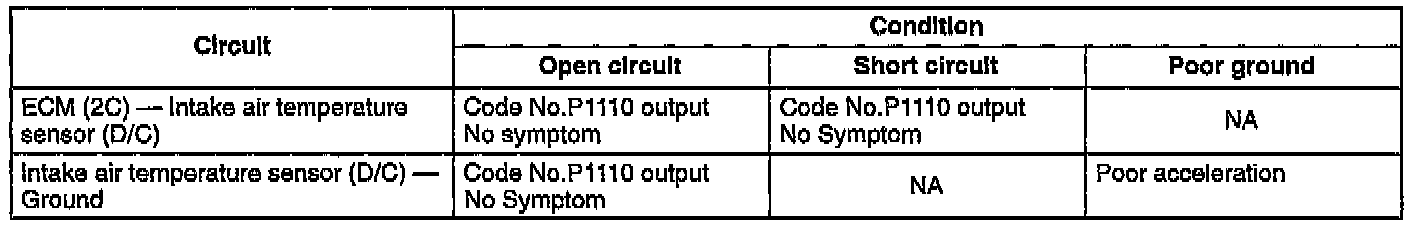

Intake Air Temperature Sensor (D/C)

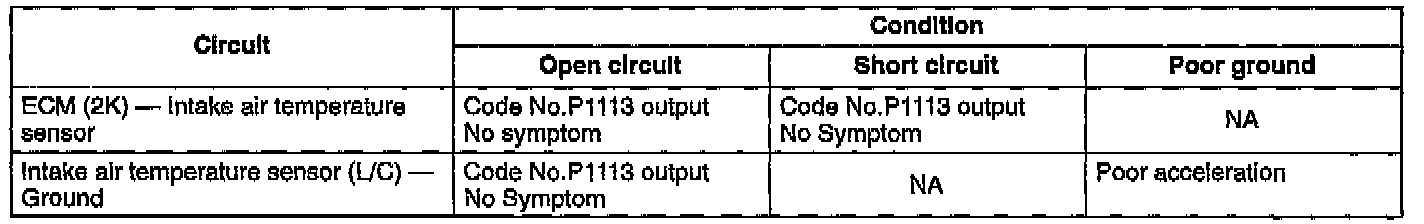

Intake Air Temperature Sensor (L/C)

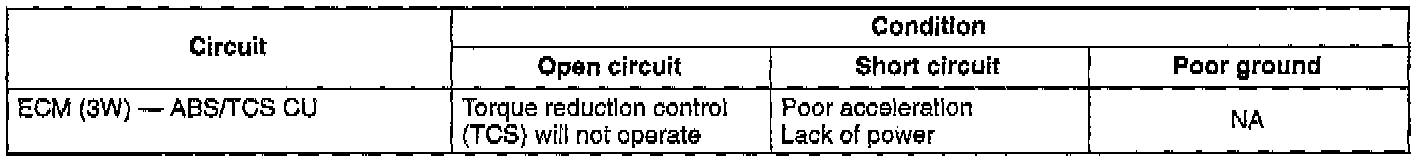

Torque Reduction Request Signal (ABS/TCS Control Unit)

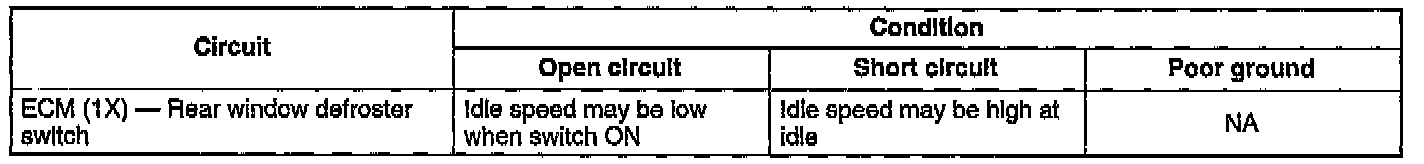

Rear Window Defroster Switch

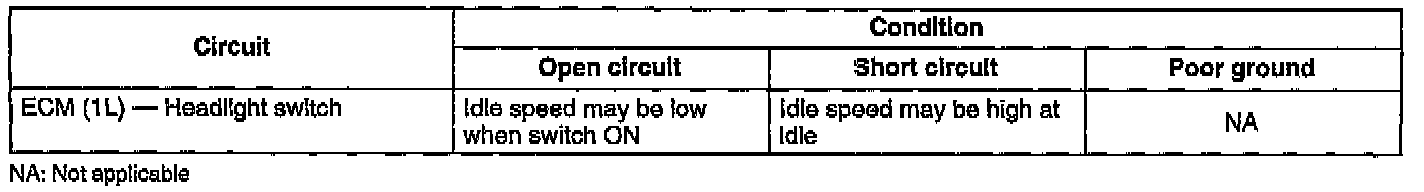

Headlight Switch
