Transmission Position Sensor/Switch: Service and Repair

Replacement
Refer to "Adjustment" below for replacement of the transaxle range switch.

Adjustment

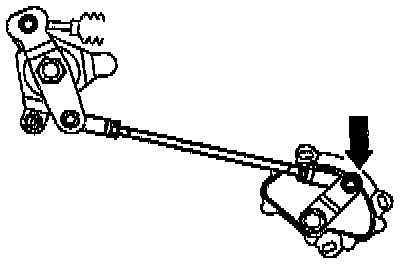

1. Remove the selector rod from the manual shaft lever.
2. Move the manual shaft to the N position.

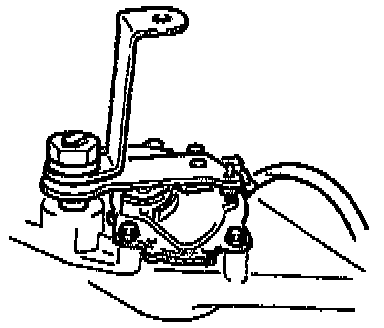

3. Loosen the transaxle range switch mounting bolts.

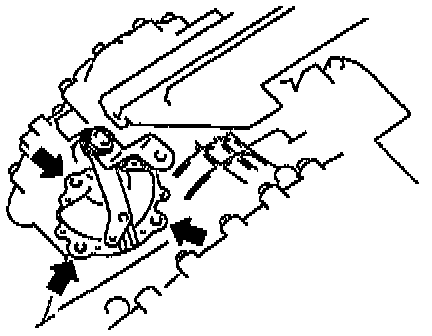

4. Align the holes of the transaxle range switch and the manual shaft lever by inserting a pin with an outer diameter of approx. 4.0 mm (0.157 in).




5. Tighten the transaxle range switch mounting bolts and remove the pin.

Tightening torque: 2.5-3.9 Nm (22-34 in-lb)

6. Recheck the continuity of the transaxle range switch.
7. If not correct, replace the transaxle range switch.




8. Install the selector rod to the manual shaft lever.
