Control Module: Testing and Inspection

TRANSAXLE CONTROL MODULE
Inspection
Use the following voltage charts as a reference when inspecting transaxle control module input/output voltages.

NOTE: Use the ground of terminal 1J of the transaxle control module when measuring terminal voltage, as "false readings" may occur when connecting the negative (-) circuit tester to any other chassis ground.

Terminal Voltage Chart (Reference Data)

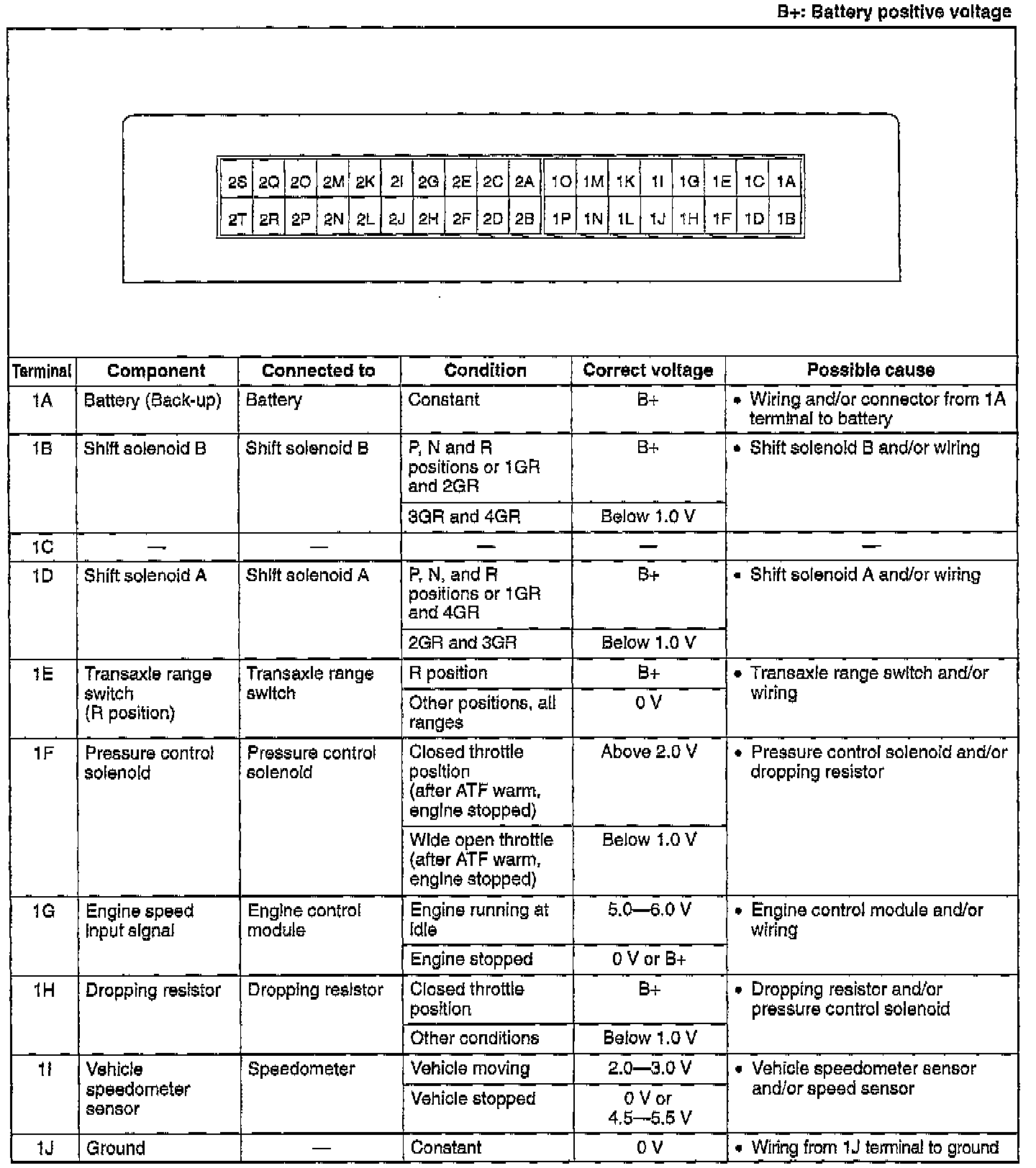

Pin Terminals 1A Through 1J:

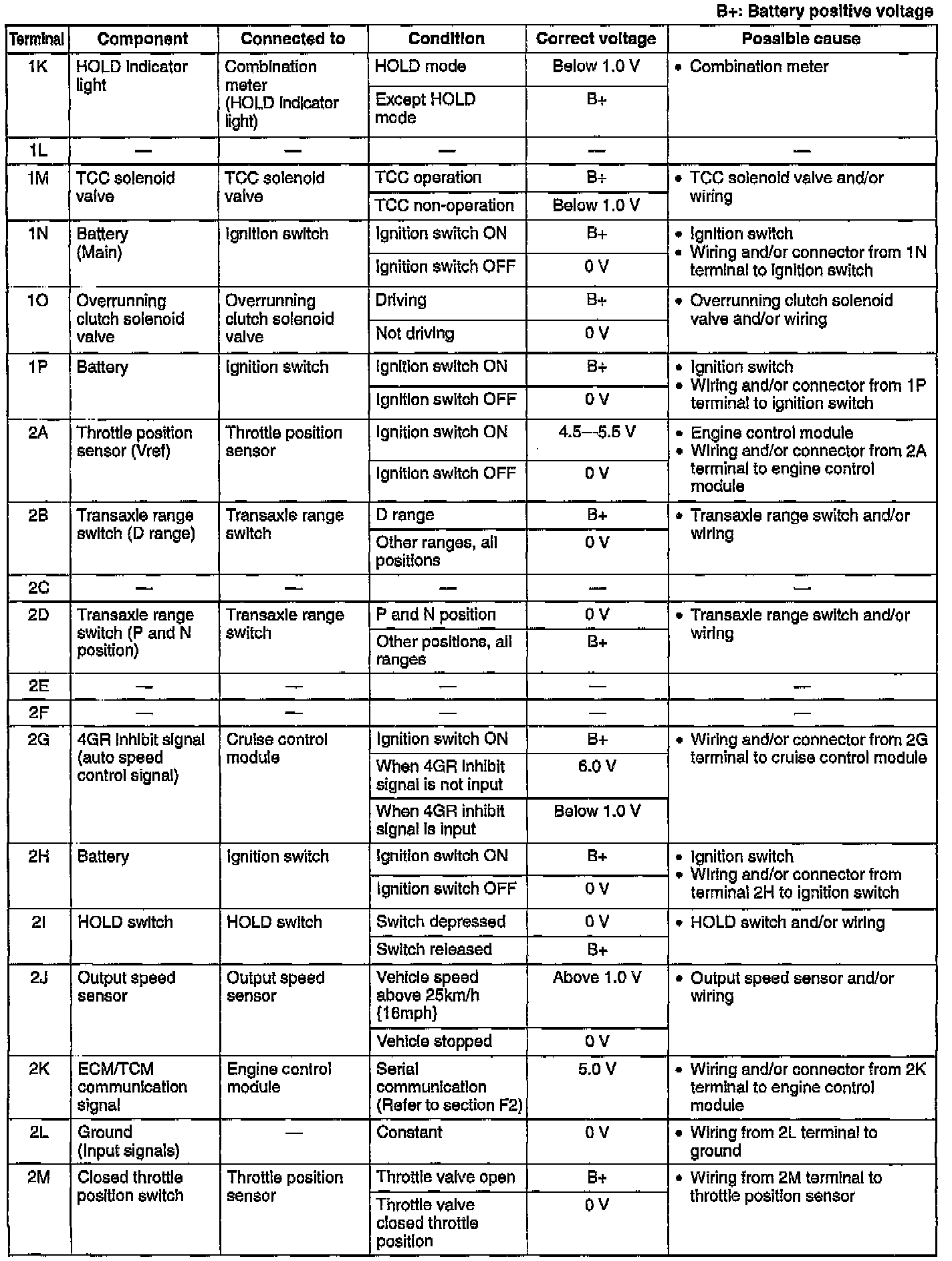

Pin Terminals 1K Through 2M:

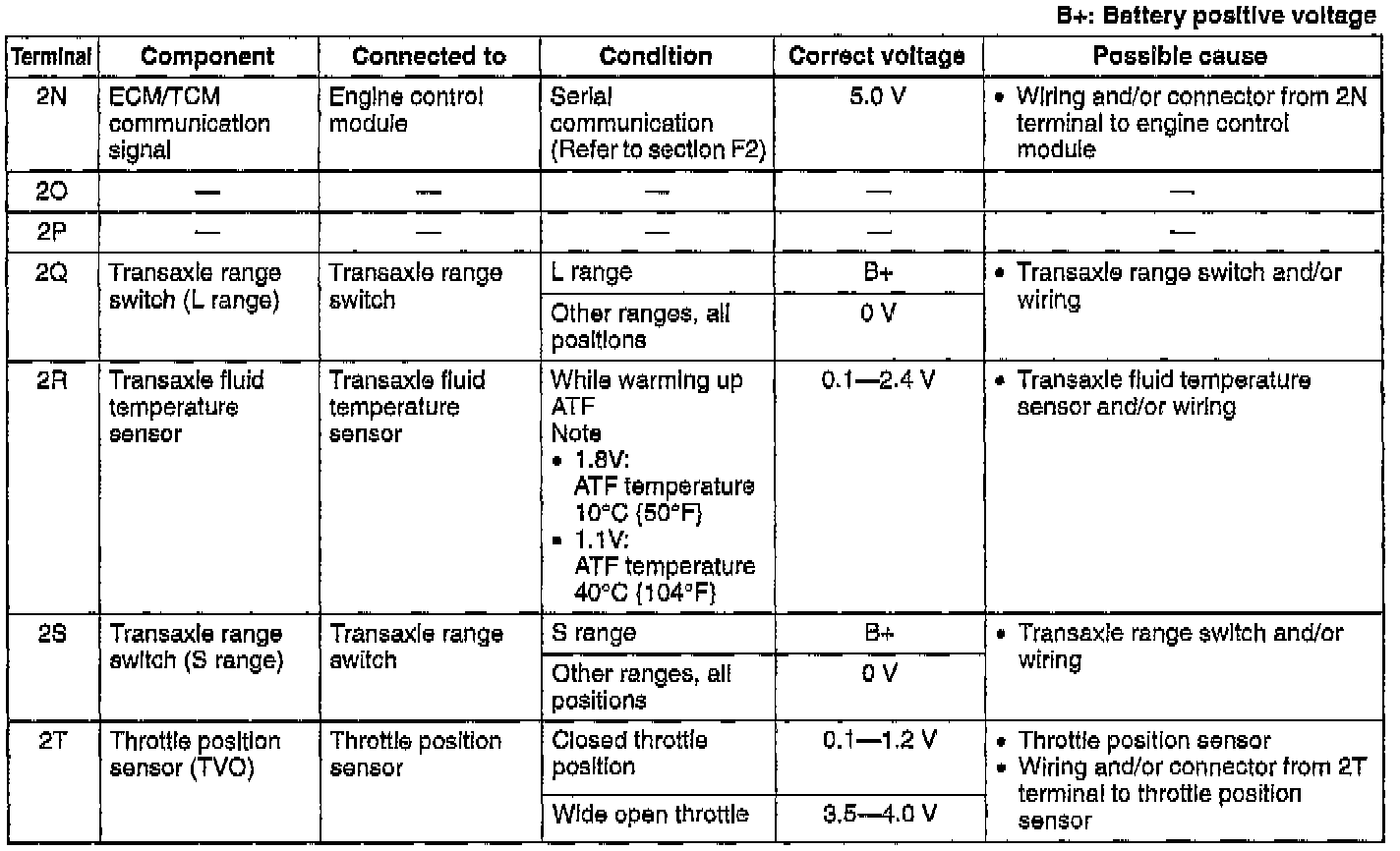

Pin Terminals 2N Through 2T:
