Output Devices

[Output Device]

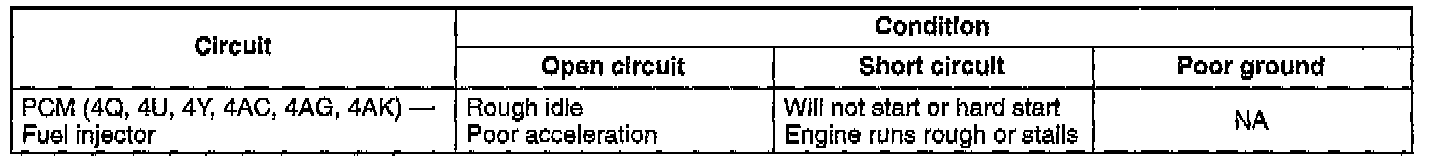

Fuel Injector

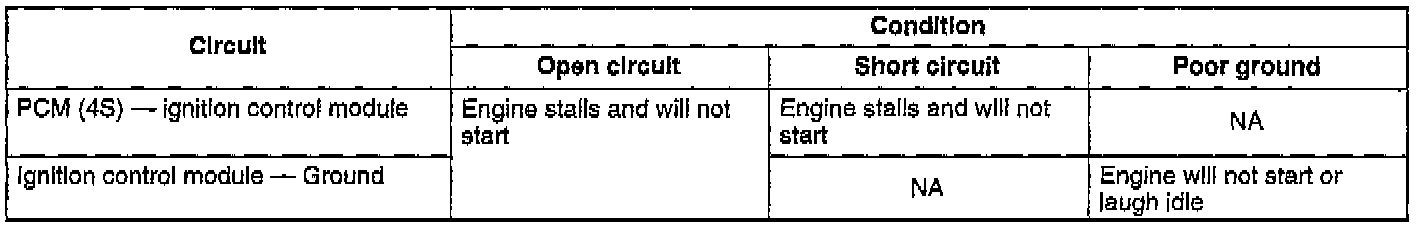

IGT Signal (Ignition Control Module)

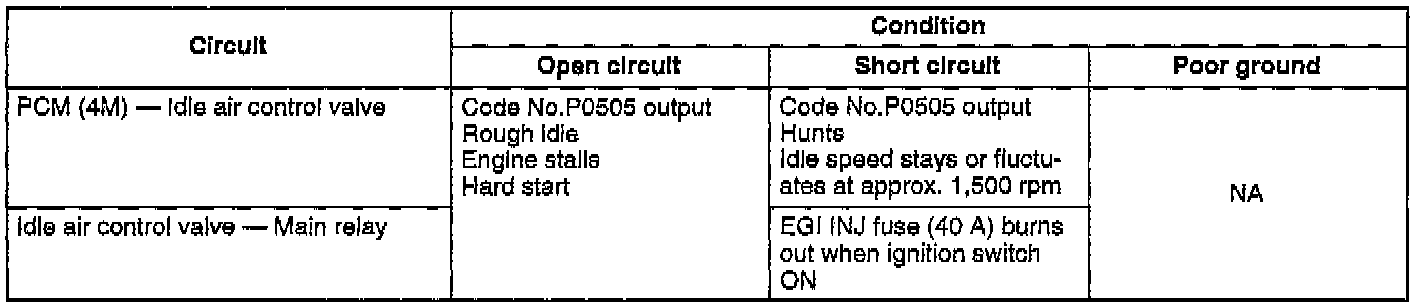

Idle Air Control Valve [IN BAC Valve]

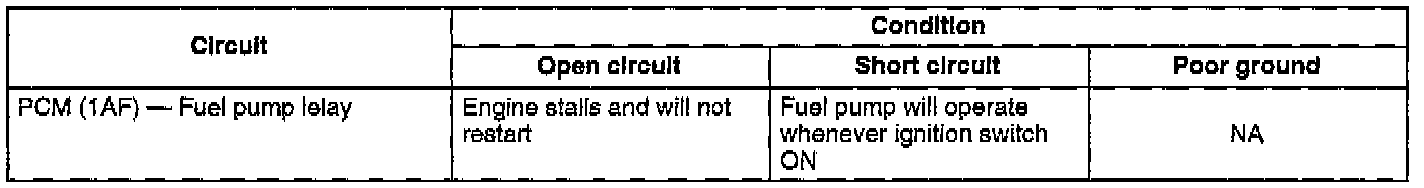

Fuel Pump Relay

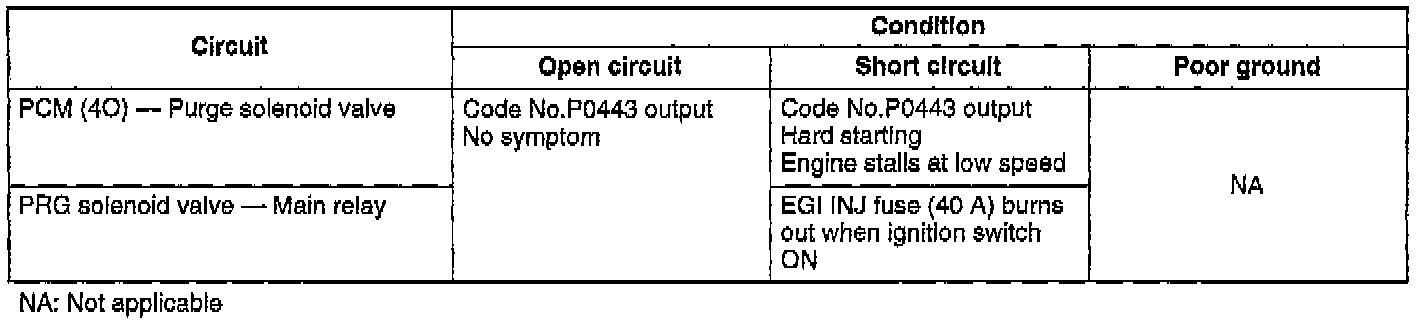

Purge Solenoid Valve

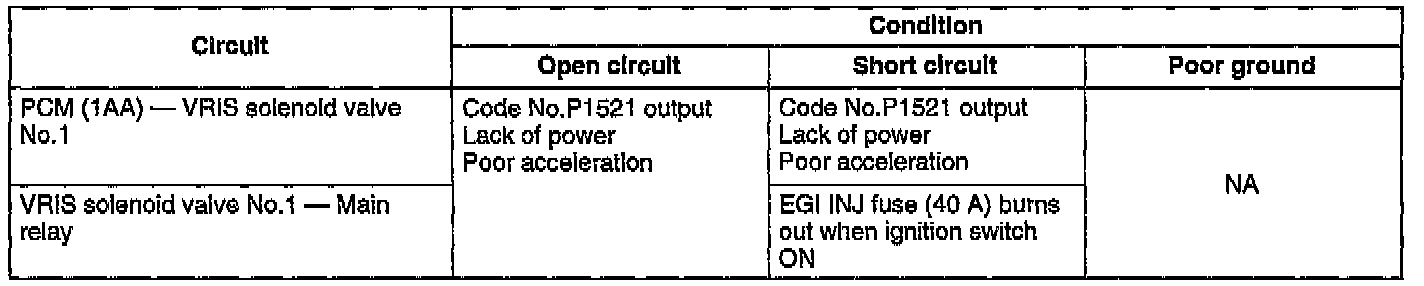

VRIS Solenoid Valve No.1

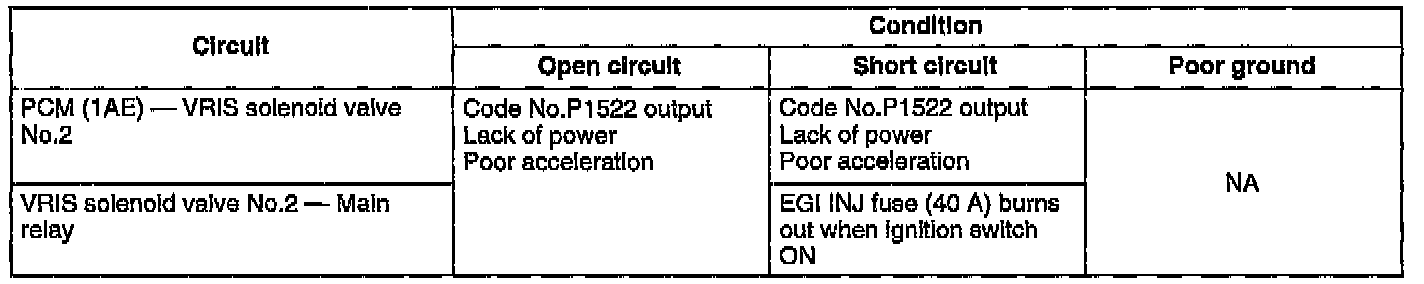

VRIS Solenoid Valve No.2

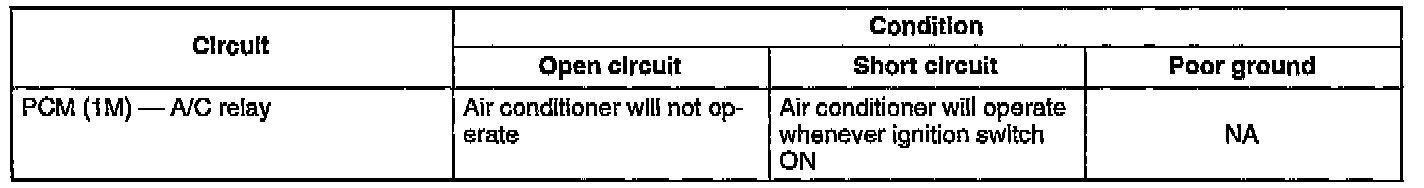

A/C Signal (A/C Relay)

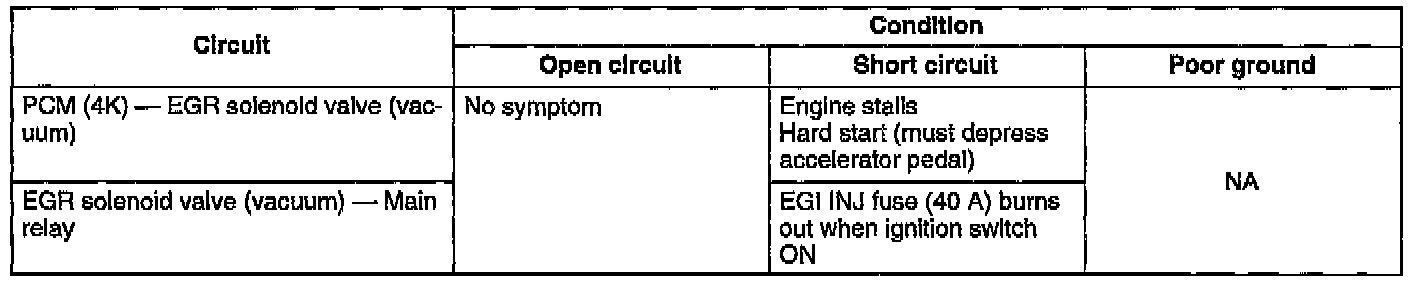

EGR Solenoid Valve (Vacuum)

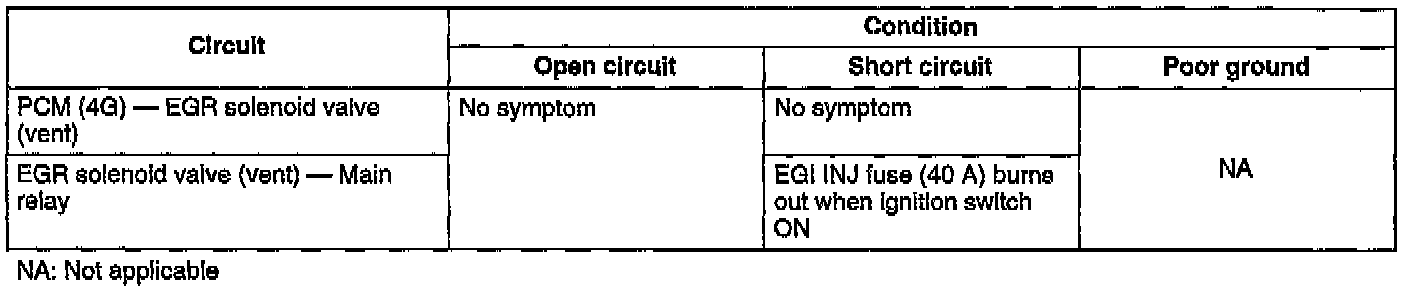

EGR Solenoid Valve (Vent)

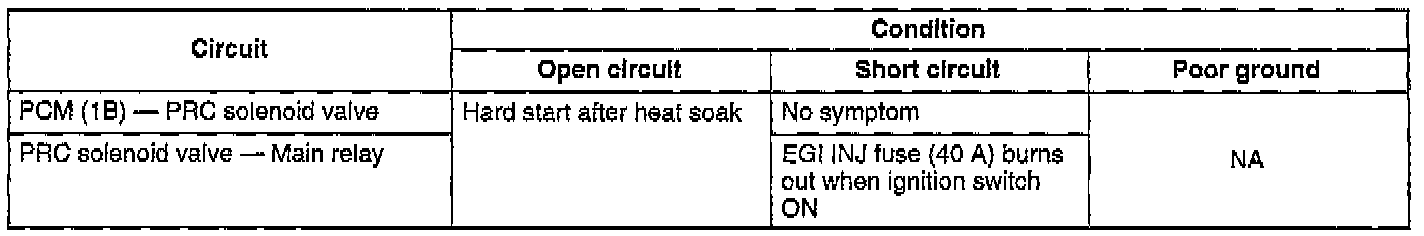

Pressure Regulator Control (PRC) Solenoid Valve




Condenser Fan Relay No.1

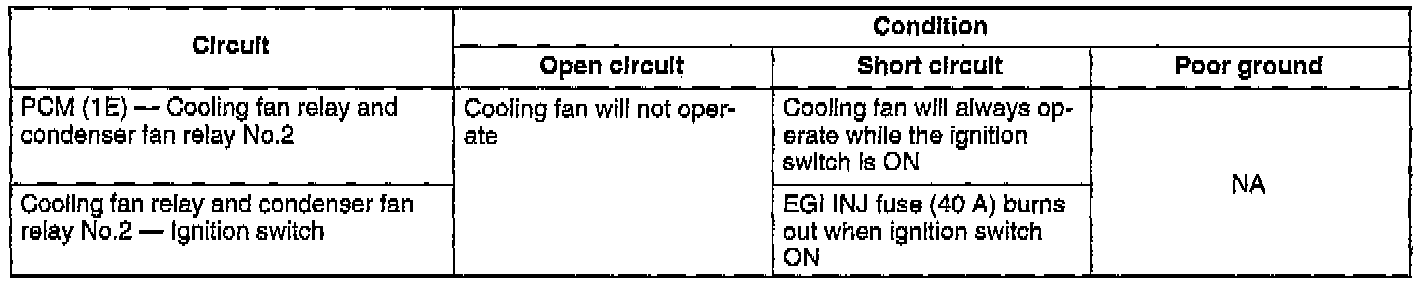

Cooling Fan Relay and Condenser Fan Relay No.2

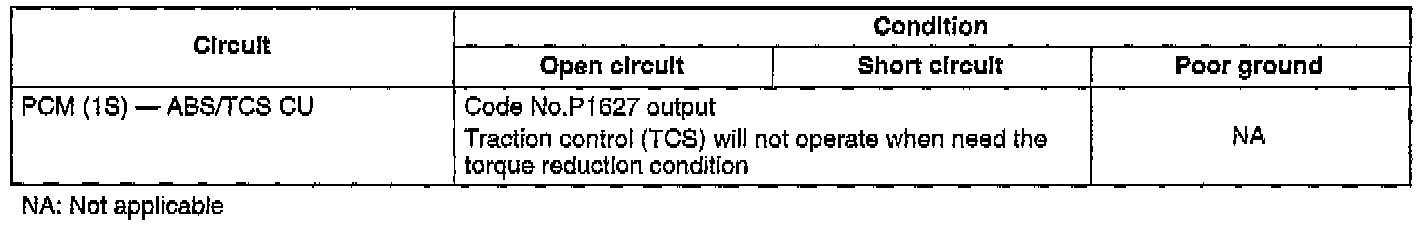

Torque Reduction Inhibit Signal [Anti-Lock Brake/Traction Control (ABS/TCS) Control Unit]
