Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
INSPECTION -
Remove the
intake air temperature sensor.
-

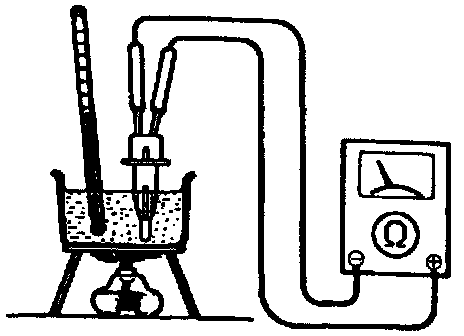

Place the sensor in water with a thermometer, and heat the water gradually.
-
Measure the resistance of the sensor by using an ohmmeter.
-

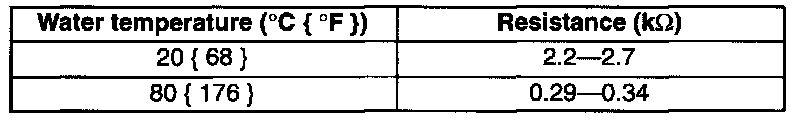

If not as specified, replace the
intake air temperature sensor.
