Power Steering Pressure Switch: Testing and Inspection
POWER STEERING PRESSURE SWITCH INSPECTION 1.

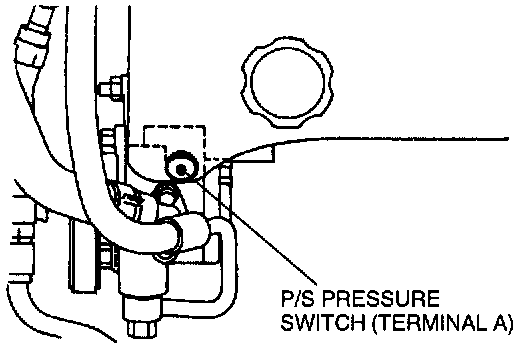

Disconnect the
power steering pressure switch connector.
2.
Start the engine.
3.

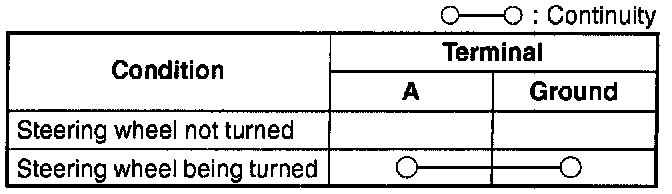

Check for the continuity between
power steering pressure switch terminal and a ground by using an ohmmeter.
4.
If not as specified, replace the
power steering pressure switch.
