EGR Valve: Testing and Inspection
INSPECTION -
Start the engine and let it idle.
-

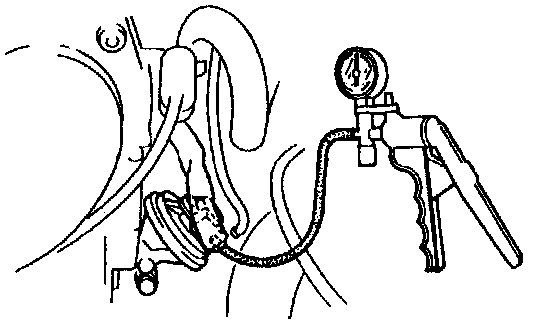

Connect a
vacuum pump as shown and apply vacuum.
-
Verify that the engine runs roughly or stalls at the specified vacuum.
Specification: 8.7 - 10.6 kPa (2.6 - 3.1 in. Hg.) -
If not as specified, replace the
EGR valve.
