Spark Test
SPARK TEST -
Remove the rear seat cushion.
-

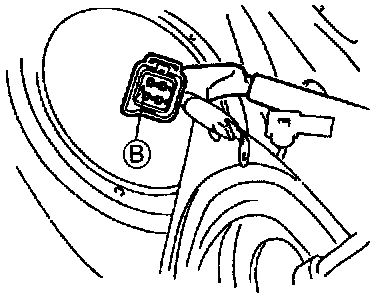

Disconnect the
fuel pump connector.
-
Verify that each high-tension lead and connector is connected properly.
-
Inspect the
ignition system in the following procedure.
WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
