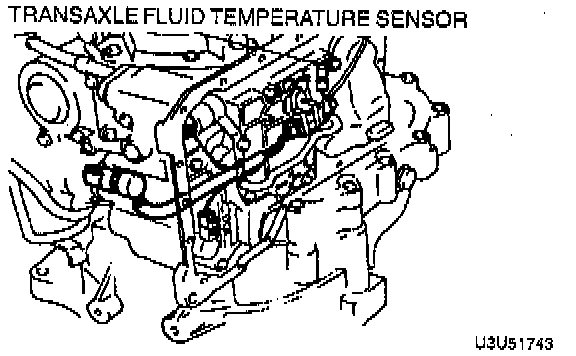

Transmission Temperature Sensor/Switch: Service and Repair
REPLACEMENT 1.
Remove the control valve body.
2.
Apply ATF to a new O-ring and install it on a new solenoid valve connector.
3.

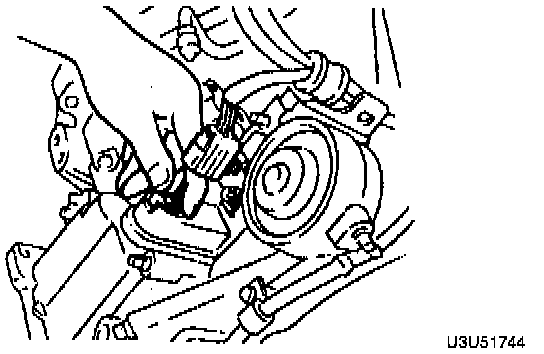

Install the solenoid connector into the transaxle case.
4.

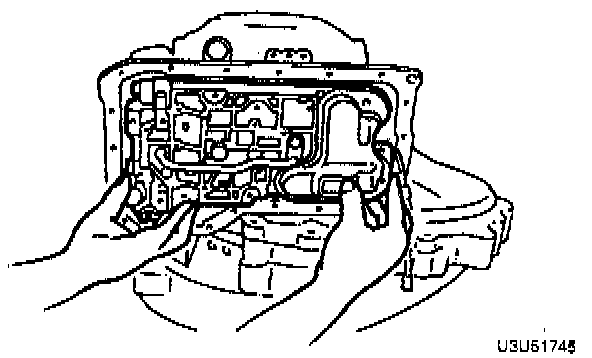

Install the control valve body.
5.
Connect the negative battery cable.
