Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
INTAKE AIR TEMPERATURE SENSOR -
Disconnect the
mass air flow sensor connector.
-

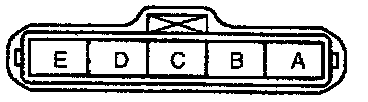

Measure the resistance between terminals C and D by using an ohmmeter.
Specification: 2.21 - 2.69 kohms @ 20°C (68°F) -
If not as specified, replace the
mass air flow sensor.
