Crankshaft Position Sensor: Service and Repair




REPLACEMENT
- Remove the undercover.

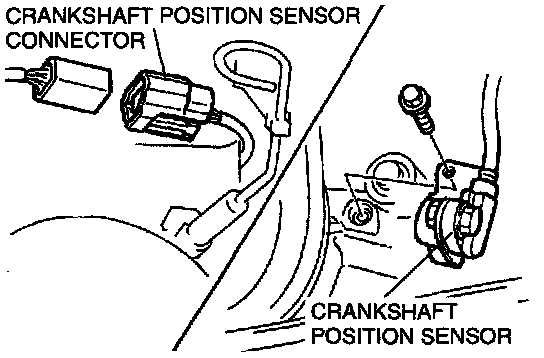

- Remove the crankshaft position sensor.
- Install in the reverse order of removal.

Tightening torque: 7.9 - 10.7 Nm (70 - 95.4 in. lbs.)
