EGR Boost Sensor Testing




INSPECTION

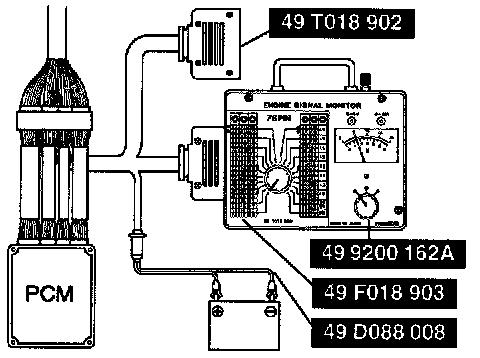

- Connect the Special Service Tools (SST)s (Engine Signal Monitor) to the PCM.

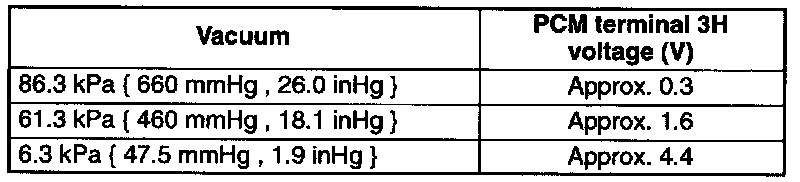

- Apply vacuum to the EGR boost sensor by using a vacuum pump. Measure the pressure at PCM terminal 3H.




- If not as specified, replace the EGR boost sensor.

USING THE NGS
- Connect the SSTs New Generation Star (NGS) tester to the data link connector-2.




- Select the PID/DATA MONITOR AND RECORD function.
- Apply vacuum to the EGR boost sensor by using a vacuum pump.

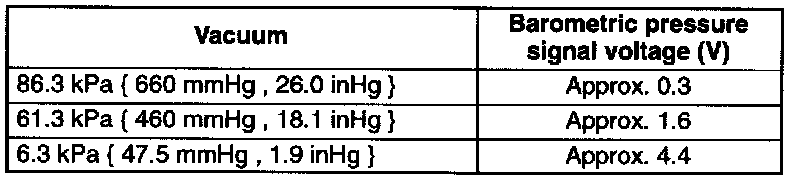

- Select "BARO V" on the NGS display. The NGS measures and shows the voltage.




- If not as specified, replace the EGR boost sensor.
