Spark Test
WARNING: High voltage in the ignition system can cause strong electrical shock. Avoid direct contact to the vehicle body during the following spark test.
SPARK TEST 1.
Remove the rear seat cushion.
2.
Disconnect the
fuel pump connector.
3.
Verify that each high-tension lead and connector is connected properly.
4.

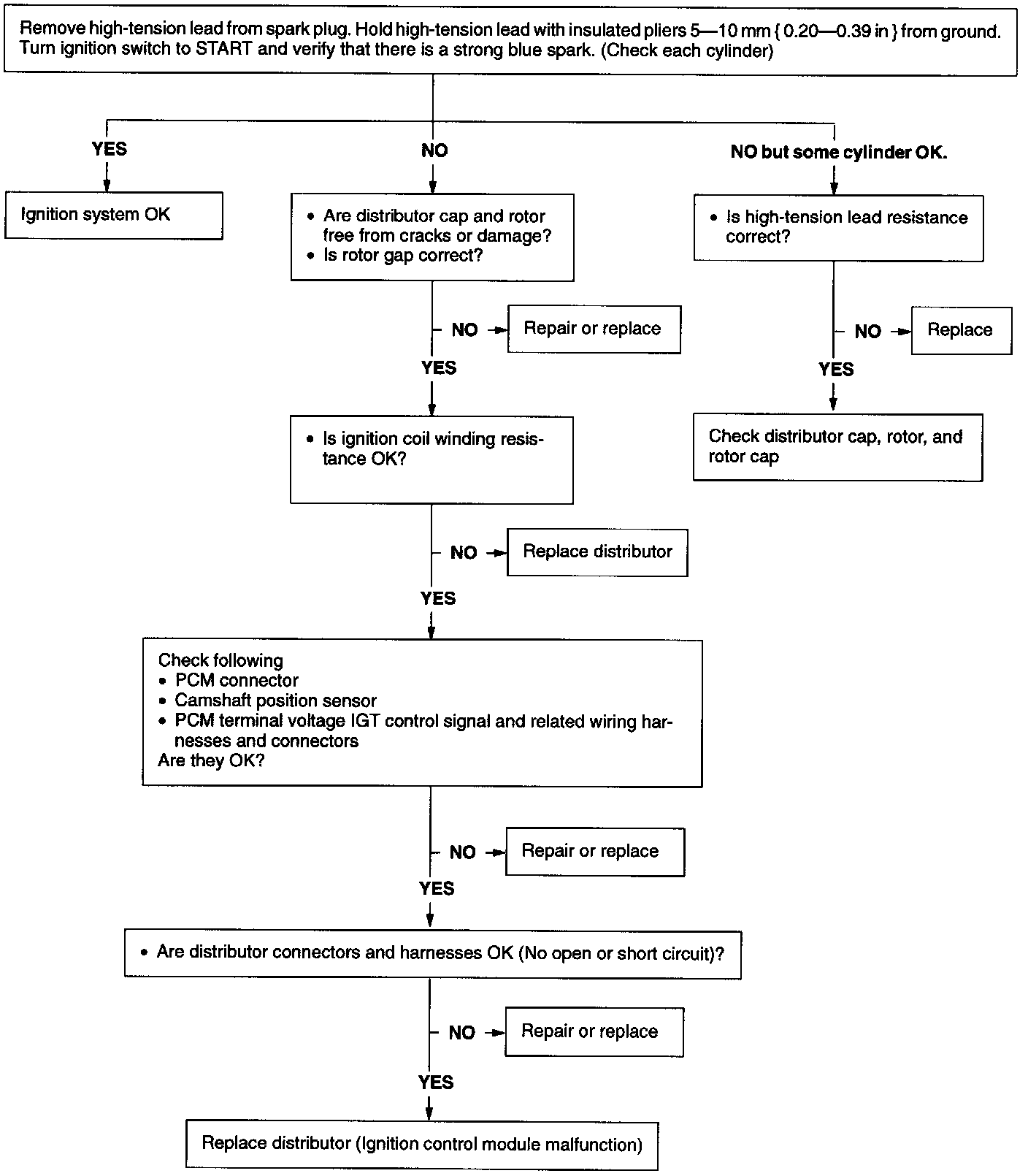

Inspect the
ignition system following the chart procedure.
