Front





REPLACEMENT
1. Jack up the vehicle and support it on safety stands.
2. Remove the wheel and tire assembly.

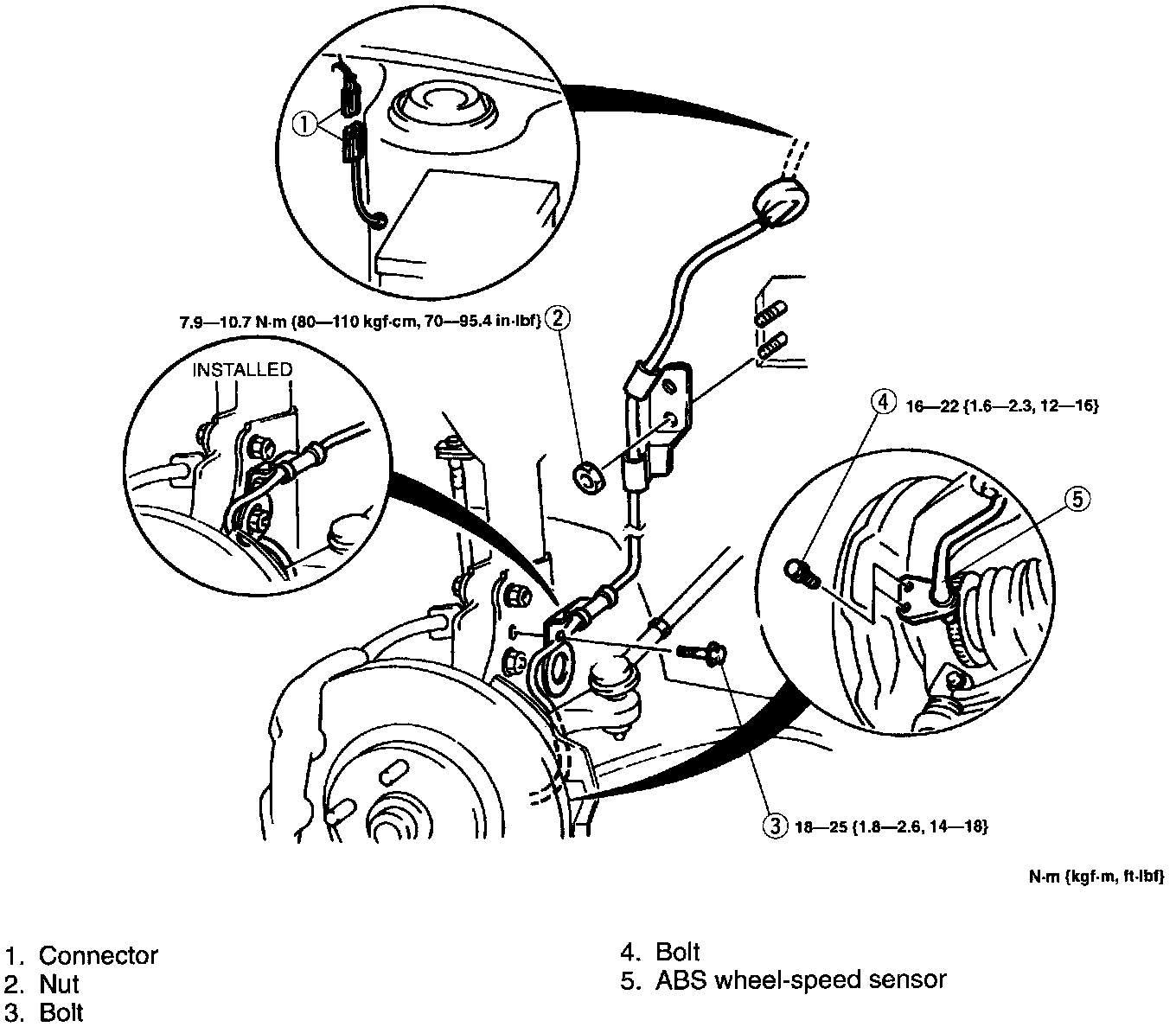

3. Remove in the order shown in the figure.
4. Install in the reverse order of the removal.
5. Install the wheel and tire assembly.
6. Verify that the diagnostic trouble codes have been cancelled. Testing and Inspection





Inspection
1. Check the resistance at the ABS wheel-speed sensor terminals.
^ Resistance: 1.6-2.0 K Ohms.
2. If not as specified, replace the ABS wheel-speed sensor.
