Variable Induction System: Service and Repair
REMOVAL / INSPECTION / INSTALLATION 1.

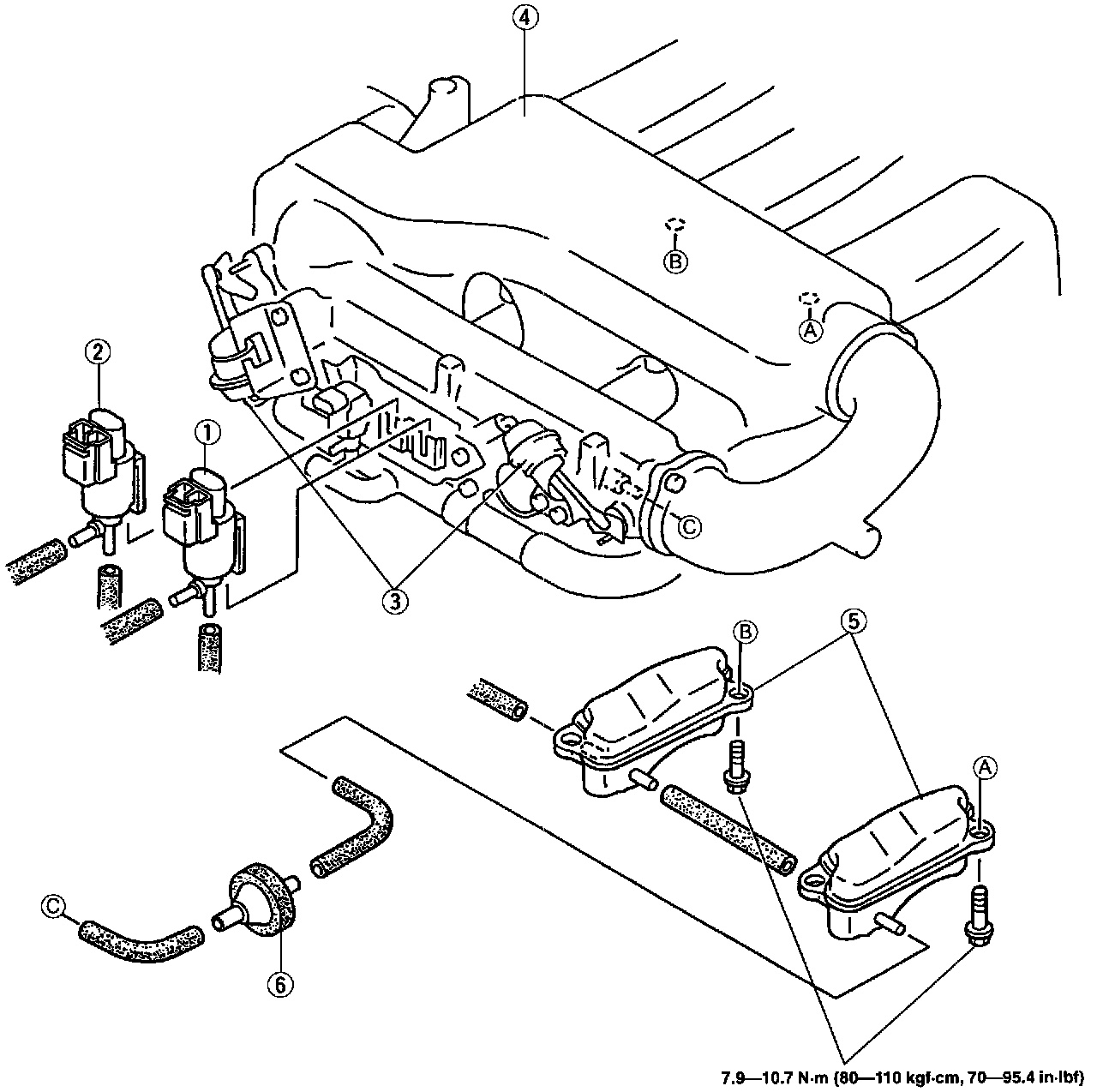

Remove in the order shown in the figure.
2.
Install in the reverse order of removal.
Variable Resonance Induction System (VRIS) Component Replacement:
1.
VRIS solenoid valve No.1
2.
VRIS solenoid valve No.2
3.
VRIS shutter valve actuator
4.
Intake manifold
5.
Vacuum chamber 6.
Check valve
