Shift Interlock Switch: Testing and Inspection

1. Disconnect the negative battery cable.
2. Remove the front console.

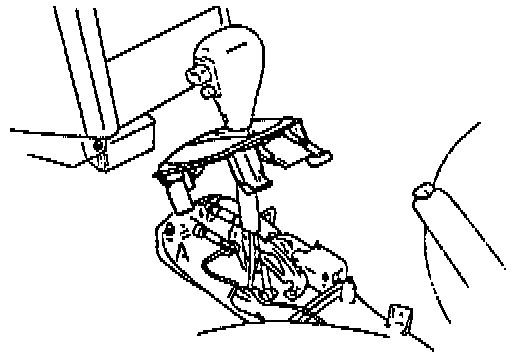

3. Remove the indicator screws and lift up the indicator panel.

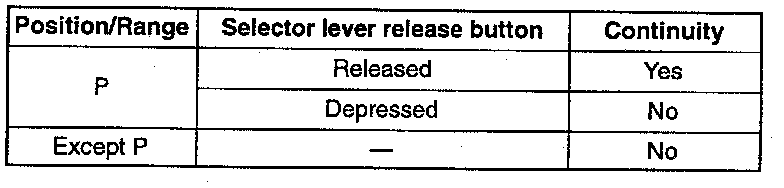

4. Disconnect the P position switch connector.





5. Check continuity between the terminals.





6. If not as specified, replace the selector lever assembly.
7. Install and adjust the indicator panel.
8. Install the front console.
9. Connect the negative battery cable.

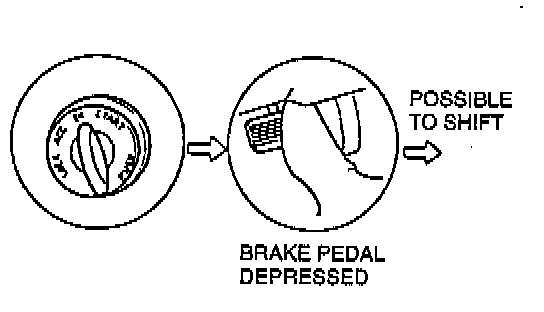

10. Check for correct operation of the shift-lock system.
