Cruise Control Switch: Testing and Inspection

Cruise Control Servo Switch Assembly
To test cruise control servo switch, perform the following voltage and resistance measurements.

^ Voltage Measurements: Remove harness connector from cruise control servo. Connect the negative lead of voltmeter to Pin 10 (P/O) of connector. Measure the DC or AC voltage of the following circuits with positive lead of meter.

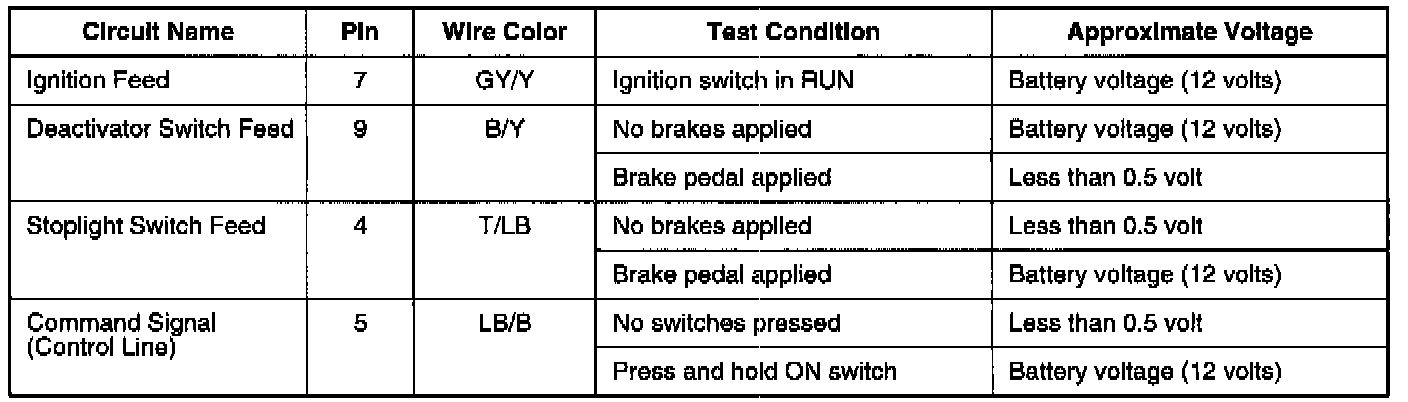

VOLTAGE MEASUREMENT - DC

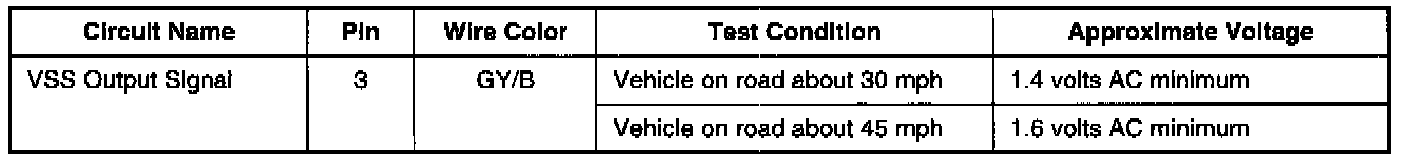

VOLTAGE MEASUREMENT - AC
^ Resistance Measurements: Remove harness connector at cruise control servo. Connect an ohmmeter between the designated circuits with the ignition switch off.

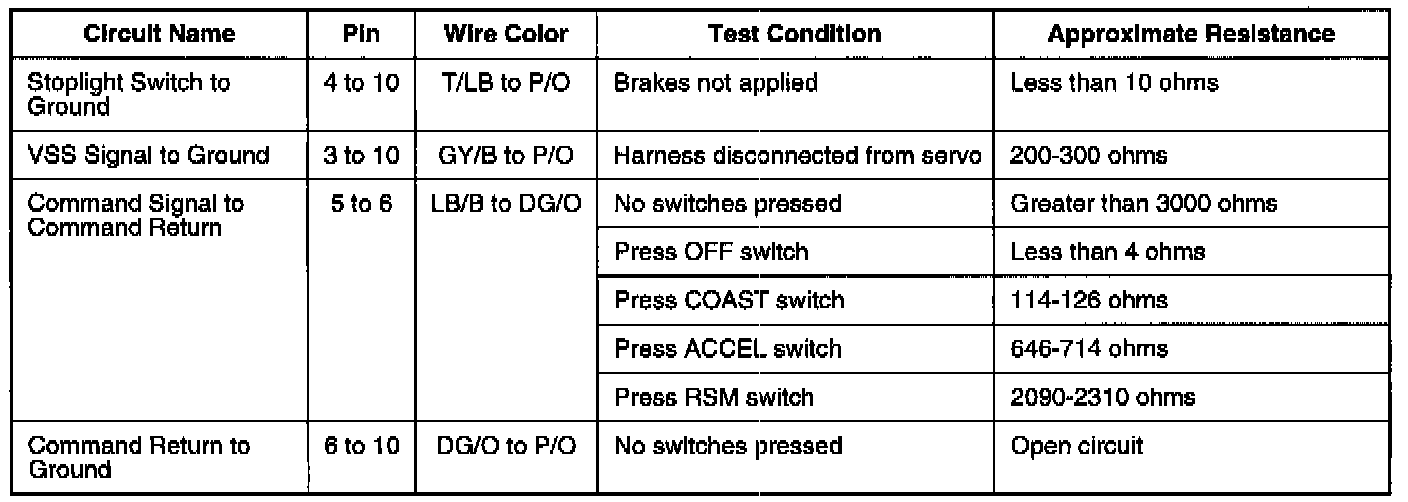

RESISTANCE MEASUREMENTS
