Transmission Position Sensor/Switch: Adjustments





REPLACEMENT/ADJUSTMENT
1. Remove the outer manual control lever end nut.
2. Disconnect the Transmission Range (TR) sensor from the wiring harness.

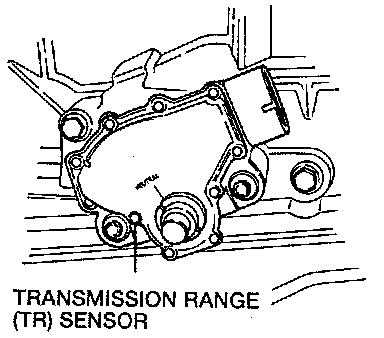

3. Remove the two TR bolts and the TR sensor.
4. Install the TR sensor on the manual lever. Finger-tighten the bolts.
5. Position the selector lever to N.
6. Rotate the manual lever to the neutral position.

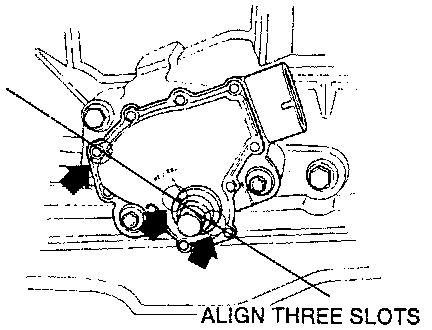

7. Install SST 49-UN01-086 or equivalent to align the three slots in line on the TR sensor.

NOTE:
^ The tool will have to be inserted into two slots, then rotated to the third.

^ The manual lever must be in the neutral position.





8. Tighten the bolts to 8 - 11 Nm (71 - 97 inch lbs.).

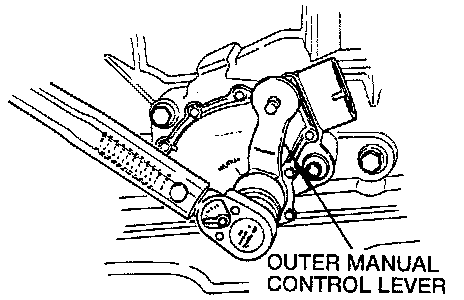

9. Install the outer manual control lever and nut. Tighten to 41 - 54 Nm (30 - 40 ft. lbs.).
