Camshaft Position Sensor: Service and Repair

CAUTION: Prior to the removal of the camshaft position sensor, set No. 1 cylinder to C degrees top dead center (TDC) of compression stroke. Then note the position of the camshaft position sensor electrical connector. The installation procedure requires that the connector be located in the same position.




REMOVAL
1. Disconnect battery ground cable.
2. Disconnect fuel charging wiring connector from stator assembly.

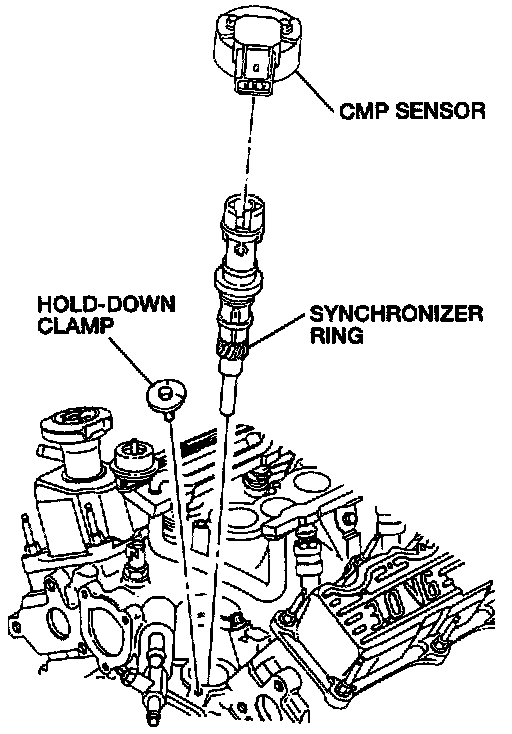

3. Remove the CMP sensor retaining screws and camshaft position sensor from synchronizer assembly.
4. If synchronizer assembly is to be removed from the cylinder block, proceed with step 5. If the synchronizer assembly is not being removed, proceed to installation step 6.
5. Remove hold-down clamp.
6. Remove synchronizer assembly from cylinder block.
