Deflection Check

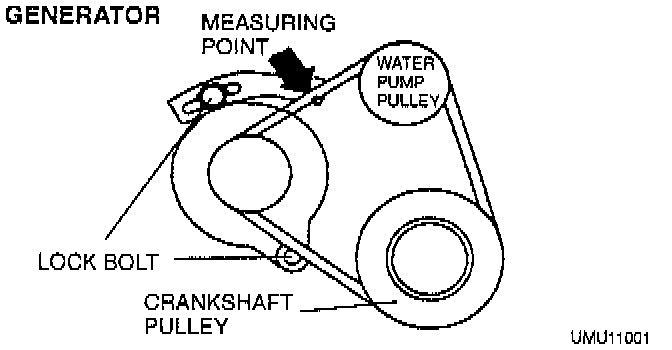

Generator Drive Belt Inspection Point:

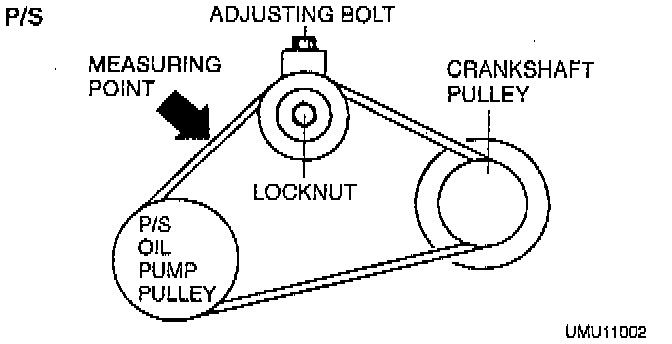

Power Steering Drive Belt Inspection Point:

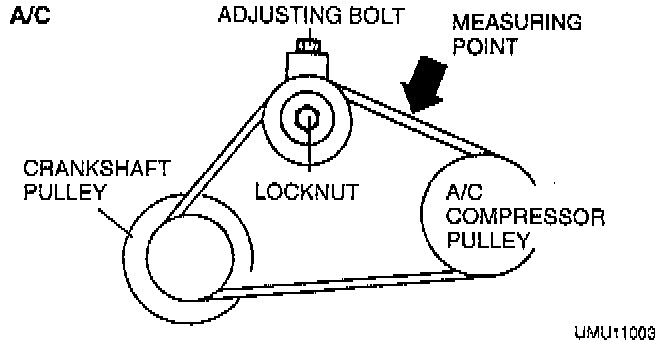

Air Conditioning Drive Belt Inspection Point:





1. Check the drive belt deflection when the engine is cold, or at least 30 minutes after the engine has stopped. Apply moderate pressure 98 N (22 lbs.) midway between the specified pulleys.

Drive Belt Deflection Specification Chart:





2. If the deflection is not within the specification, adjust it. Refer to the adjustment procedure for the specific belt.
