Trailer Tail Light - Harness Connection Modification

Bulletin No.: 020/96
Issued: 11/07/96
Revised:

Category
T

Applicable Model/s
1997 MPV

Subject:
TRAILER TAIL LIGHT HARNESS CONNECTION

APPLICABLE MODELS
1997 MPV with a VIN of JM3LV52**V0800001 and higher.

DESCRIPTION

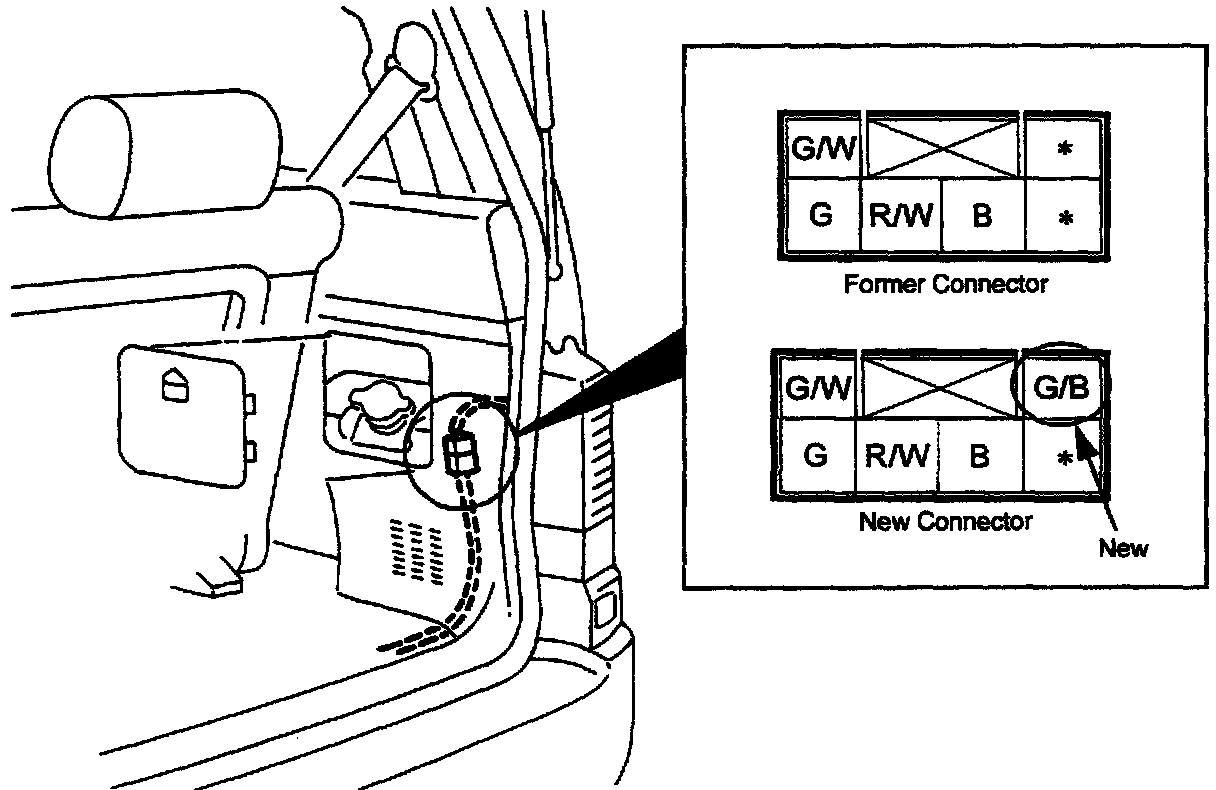

The tail light harness has been modified to accommodate trailer connections for towing. A trailer light harness can be connected to the E3-04 connection through the rear washer reservoir access cover.

The modification to the right side harness also incorporates the left side lights.
