Front Cross-Member: Service and Repair

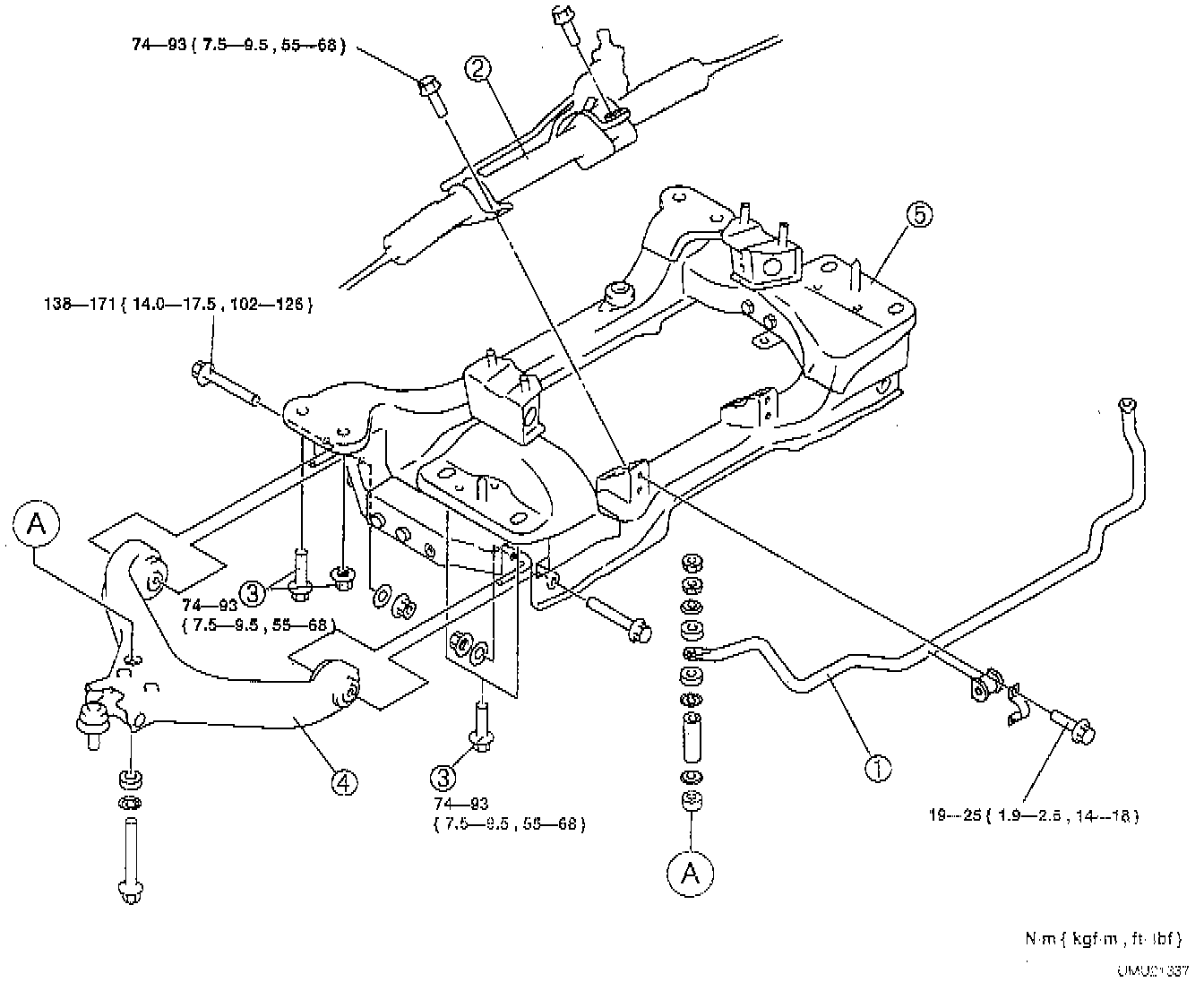

REMOVAL / INSTALLATION
1. Remove the undercover.
2. Remove the front differential and Automatic Free Wheel Hub (AFW) component. Refer to Transmission and Drivetrain.

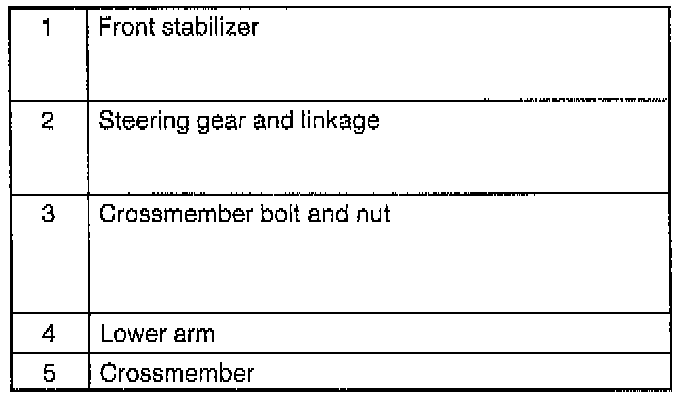

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal indicated in the table.
5. Check the front wheel alignment and adjust it if necessary.





Crossmember Bolt And Nut Removal Note (3)
1. Support the engine by using the Special Service Tool (SST).
2. Support the crossmember by using a jack, then remove the crossmember nuts.
