Front
1.
Remove the drain plug, filler plug, and washers.
2.
Drain the oil into a container.
3.
Wipe the plugs clean.
4.
Install the drain plug and a new washer. Tighten to
40 - 53 Nm (29 - 39 ft. lbs.).
5.

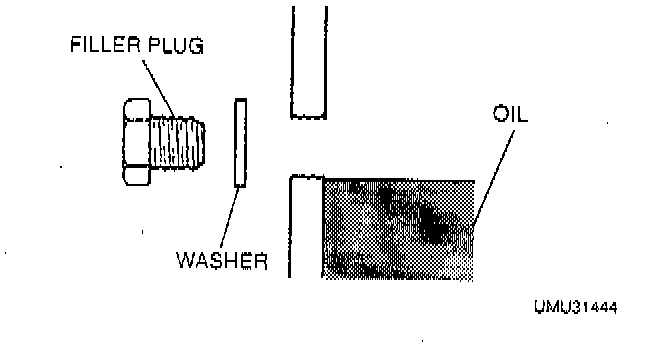

Add the specified oil through the filler plug hole until the level reaches the brim of the hole.
6.
Install the filler plug and a new washer. Tighten to
40 - 53 Nm (29 - 39 ft. lbs.).
