Front

1. Remove the filler plug and washer.

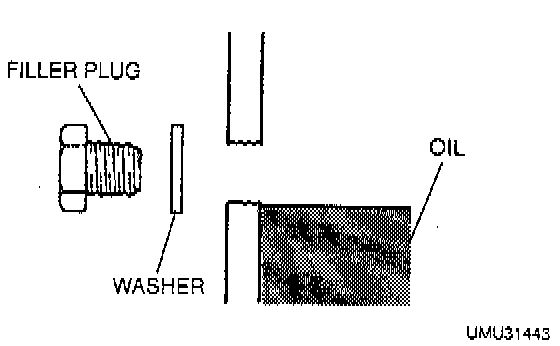

2. Verify that the oil is up to the brim of the filler plug hole, as shown.
3. If it is low, add the specified oil.
4. Install the filler plug and a new washer. Tighten to 40 - 53 Nm (29 - 39 ft. lbs.).
