Connecting Rod Bolt/Nut
Connecting
Rod Cap
Nuts
27.0 - 31.8 Nm {2.75 - 3.25 kgf/m, 19.9 - 23.5 ft. lbs.} NOTES: a.

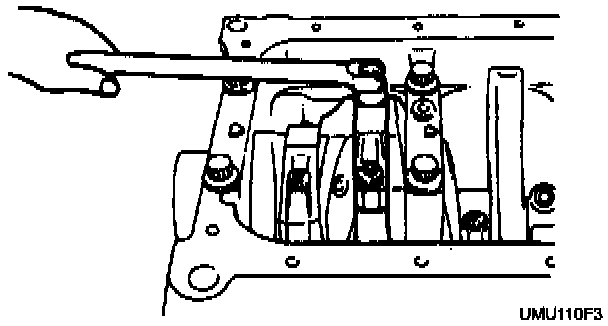

Tighten the
connecting rod cap nuts to the above specification.
b.
Put a paint mark on each nut head.
c.

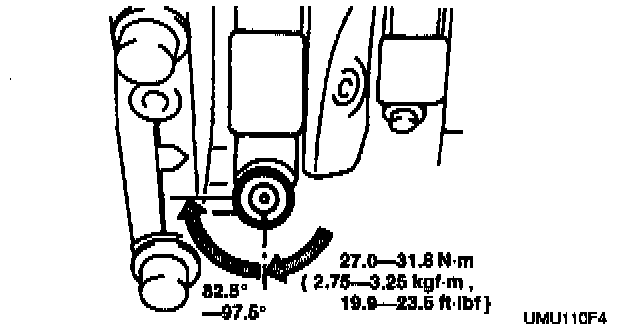

Using the paint mark as a reference, tighten the nuts 82.5° - 97.5°.
d.
Verify that the
crankshaft rotates smoothly by hand.
