Front





REMOVAL / INSTALLATION
1. Drain the differential gear oil.
2. Remove in the order indicated in the illustration, referring to removal note.
3. Install in the reverse order of removal indicated in the illustration, referring to installation note.

Removal Note

Left and Right Drive Shaft, Axle (4)

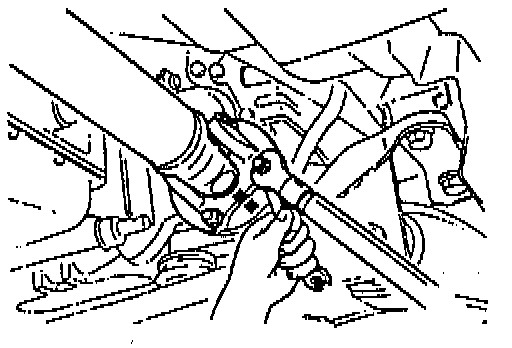

Separate the drive shafts from the differential by prying with a bar inserted between the outer ring and the differential. Suspend the drive shafts by using a rope after removal.





Front Differential and AFW Unit (7)

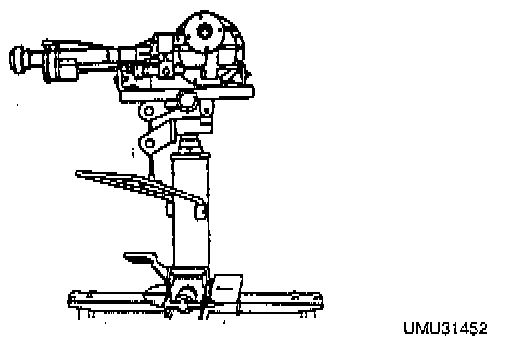

1. Support the differential on a transmission jack.
2. Remove the bolt and nut.
3. Remove the front differential and AFW unit.

Installation Note





Front Propeller Shaft (7)
Align the marks and install the front propeller shaft.
