Control Module: Testing and Inspection
Part 1 Of 2:
Part 2 Of 2:
1.

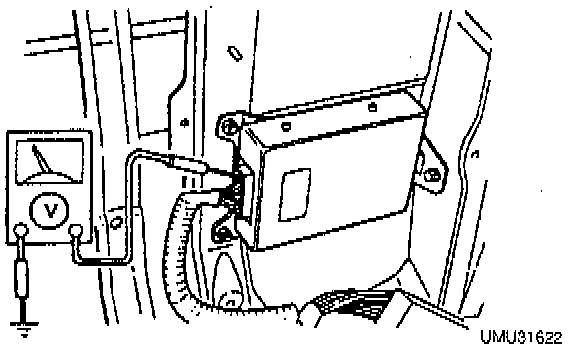

Turn the ignition switch to ON. Measure the 4WD control module terminal voltages, referring to the Terminal voltage chart.
2.
If not as specified, check, repair, or replace the component(s), wiring, and/or 4WD control module.
