Compressor Clutch: Adjustments
-

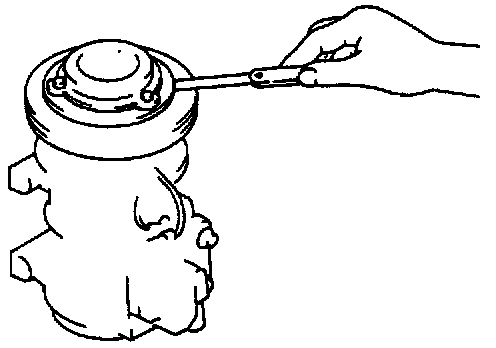

Adjust the clearance by using shims if necessary. Adjusting shims are available in the following thicknesses.
Adjusting shim size
0.1 mm { 0.004 in)
0.3 mm (0.012 in)
0.5 mm (0.020 in) Standard clearance
0.35-0.65 mm { 0.014-0.025 in)
