Control Assembly: Adjustments

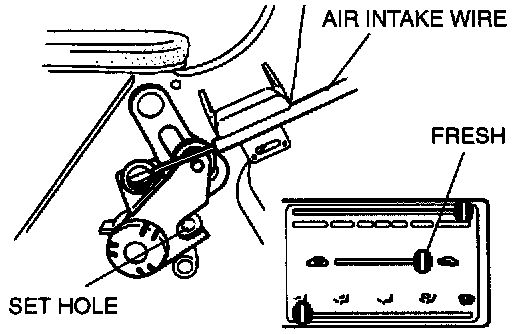

Air Intake Wire





1. Set the REC/FRESH lever at FRESH.
2. Connect the air intake wire to the air intake link.
3. Set the air intake link to FRESH and insert a screwdriver (diameter 5) at the set hole.
4. Clamp the air intake wire.
5. Verity that the REC/FRESH lever moves its full stroke.

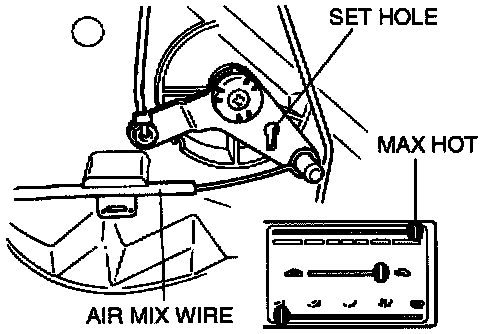

Air Mix Wire





1. Set the temperature control lever at MAX HOT.
2. Connect the air mix wire to the air mix link.
3. Set the air mix link to MAX HOT and insert a screwdriver (diameter 5) at the set hole.
4. Clamp the air mix wire.
5. Verify that the temperature control lever moves its full stroke.

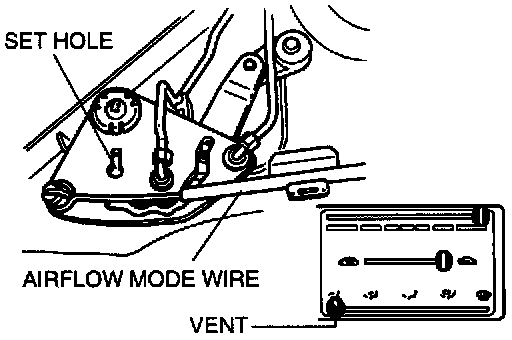

Airflow Mode Wire





1. Set the mode lever at VENT.
2. Connect the airflow mode wire to the airflow mode link.
3. Set the airflow mode link to VENT and insert a screwdriver (diameter 5) at the set hole.
4. Clamp the airflow mode wire.
5. Verify that the mode lever moves its full stroke.
