Rear Wheel Alignment

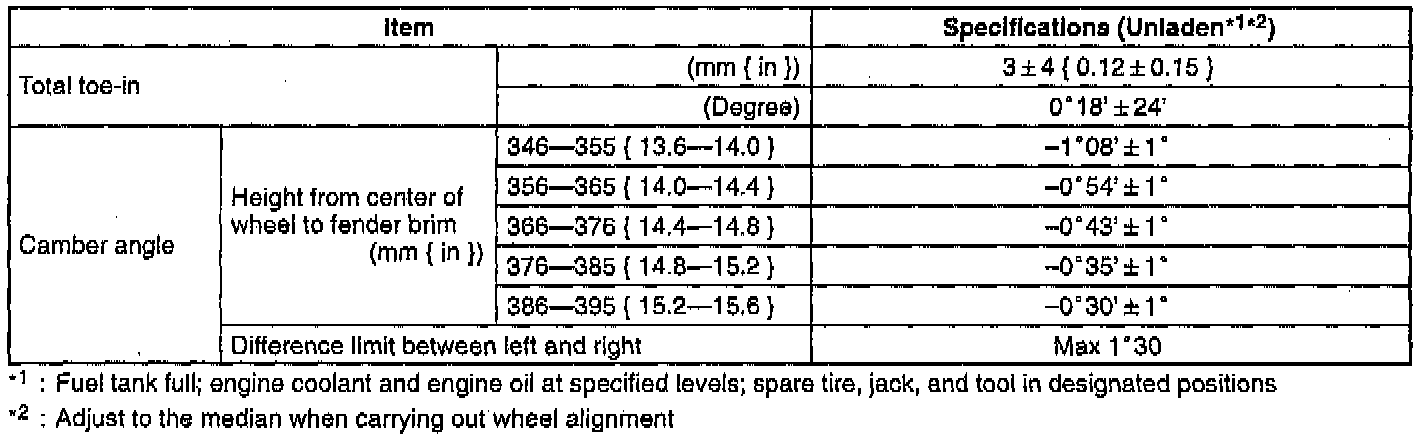

CAUTION: Adjust the toe-in before adjusting the camber.





TOTAL TOE-IN
1. Loosen the front and/or rear cam nuts.

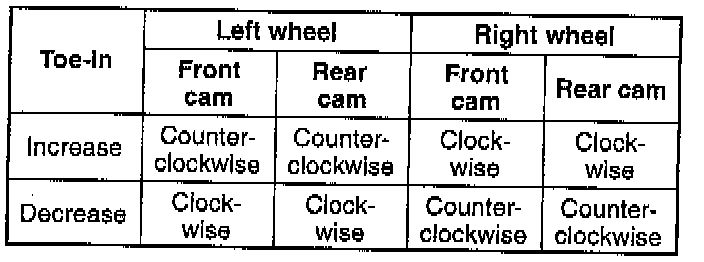

2. Turn the front and/or rear adjusting cam bolts to provide the correct toe-in.





NOTE: Turning the front cam one graduation changes the toe-in about 2.8 mm (0.11 inch) and the camber about 15 minutes. Turning the rear cam one graduation changes the toe-in about 2.8 mm (0.11 inch) and the camber about 6 minutes.

3. Adjust the camber.

CAUTION: Adjust the camber after adjusting the toe-in.





CAMBER
1. Loosen the front and rear cam nuts.

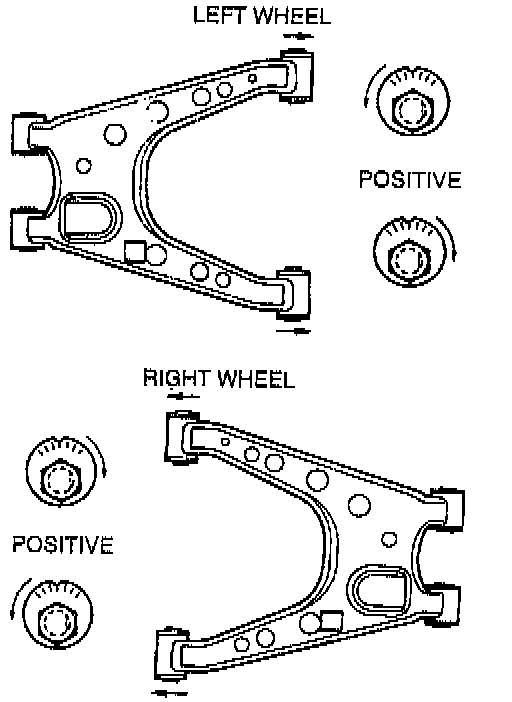

2. Turn the front and rear adjusting cam bolts the same amount in the opposite direction to provide the correct camber angle.





NOTES:
^ Turning the front cam one graduation changes the toe-in about 2.8 mm (0.11 inch) and the camber about 15 minutes. Turning the rear cam one graduation changes the toe-in about 2.8 mm (0.11 inch) and the camber about 6 minutes.

^ If the cam cannot be turned far enough to make the adjustment, begin again at adjustment of the toe-in using the other cam.

3. Tighten the nuts to 73 - 95 Nm (54 - 70 ft. lbs.).
