Camshaft Position Sensor: Service and Repair
CAMSHAFT POSITION SENSOR REPLACEMENT 1.
Remove the ignition coil.
2.

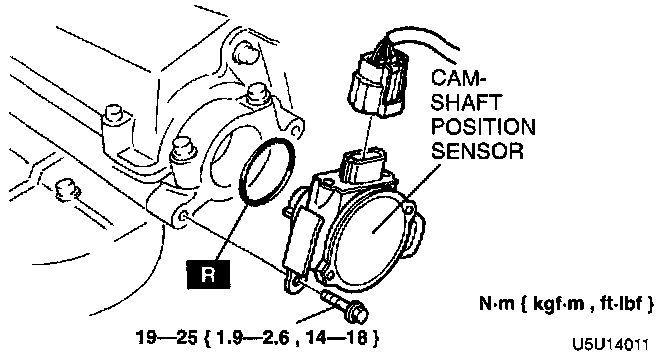

Remove the
camshaft position sensor as shown in the figure.
3.
Install in the reverse order of removal.
Torque mounting bolts to: 19-25 Nm (14-18 ft.lbs.).
