Manual Transmission
INSPECTION -
Disconnect the neutral switch connector.
-

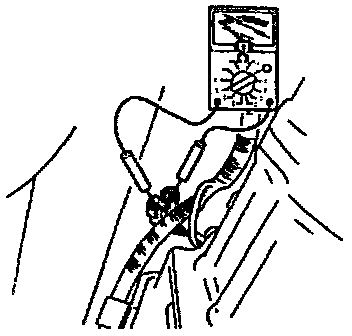

Connect an ohmmeter to the switch.
-

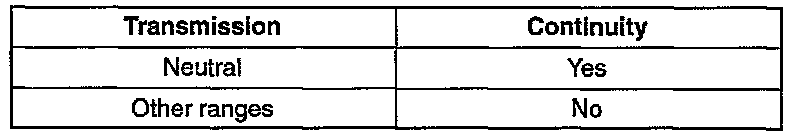

Check continuity of the switch.
-
If not as specified, replace the neutral switch.

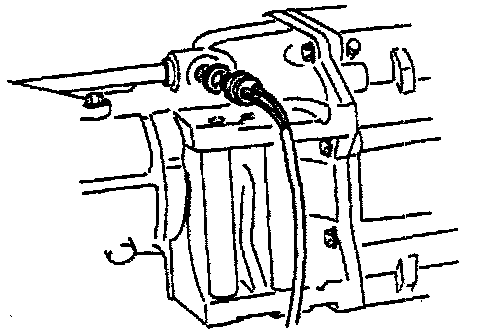

REPLACEMENT Replace the neutral switch as shown in the figure.
Tightening torque: 25 - 29 Nm (19 - 21 ft. lbs.)
