Spark Plug: Service and Repair
SPARK PLUG REMOVAL/INSTALLATION CAUTION:-
Pulling on the wire part of the
spark plug lead may break the wire. To remove the lead, pull only on the boot.
-

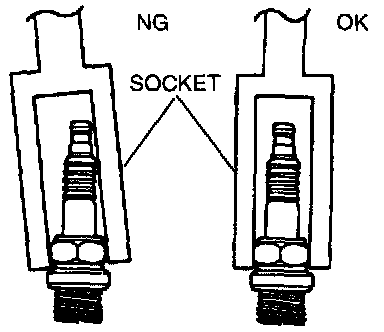

To avoid breaking the
spark plug, be sure to fit the socket squarely over it.
1.
Disconnect the high-tension lead.
2.
Remove the
spark plug.
3.
Install in the reverse order of removal.
Gap: 1.0-1.1 mm (0.04-0.043 in.)
