Electronic Brake Control Module: Service and Repair






1. Fold the passenger seat forward and lift up the carpet.

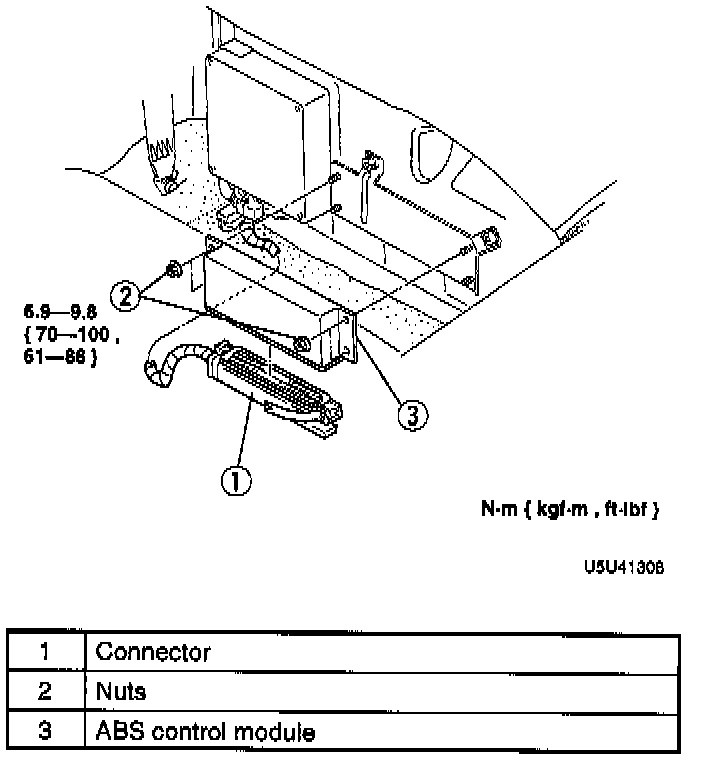

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal indicated in the table.

CAUTION: Connect the connector securely. If a poor contact occurs, the ABS system may malfunction.
