Tightening Specifications
TIGHTENING SPECIFICATIONS Mounting Bolts
8 - 11 Nm (70 - 95 inch lbs.).
TIGHTENING SPECIFICATIONS2.

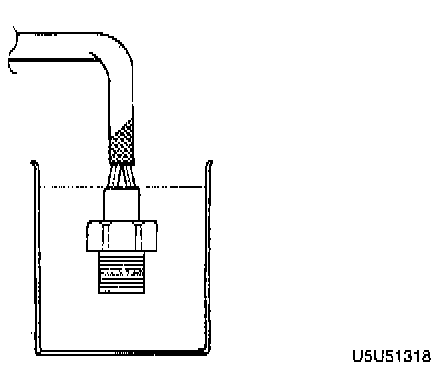

Place the transmission fluid temperature sensor in water with a thermometer as shown and heat the water gradually.
3.

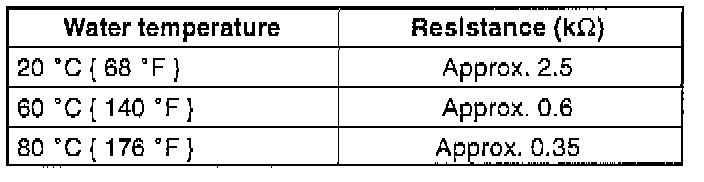

Measure the resistance between the terminals.
4.
If not correct, replace the transmission fluid temperature sensor.
