Transmission Temperature Sensor/Switch: Service and Repair

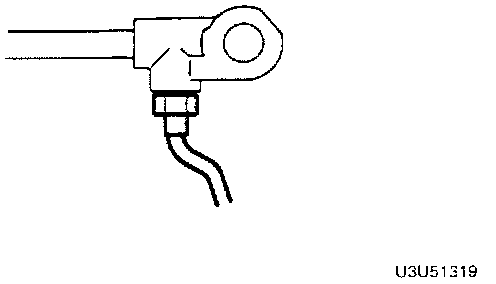

TRANSMISSION FLUID TEMPERATURE SENSOR REMOVAL/INSTALLATION 1.
Disconnect the transmission fluid temperature sensor connector.
2.
Remove the transmission fluid temperature sensor.
3.
Install a new transmission fluid temperature sensor.
Tightening torque: 7.9-10.7 Nm (70-95 in.lbs.) 4.
Connect the transmission fluid temperature sensor connector.
