Windows: Service and Repair





1. Remove the outside mirror.
2. Remove the installation screw.

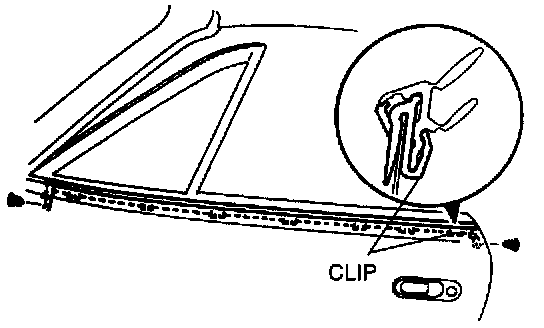

3. Pull the front beltline molding upward to disengage the clips from the body and remove the front beltline molding.
4. Install in the reverse order of removal.
